W16x77 – W Shapes - American wide flange beams

W16x77 is 16.5 in (419 mm) deep with a 10.3 in (262 mm) wide flange, and weighs 77 lb/ft (114.6 kg/m).

Wide-flange (W) shapes are the most widely used structural steel section in North American construction — an I-shaped profile with flanges that are parallel-faced and constant in thickness, connected by a web running the full depth of the section. That shape puts the bulk of the material as far from the neutral axis as possible, giving W shapes an excellent strength-to-weight ratio for resisting bending. They're specified as beams, columns, and everything in between, across virtually every building type — from single-storey warehouses to high-rise frames — and in bridges, platforms, and heavy equipment supports. The wide range of depths and weights available in the AISC series means there's a W shape suited to almost any span or load, from light floor framing through to the heaviest deep columns carrying a high-rise's gravity loads.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

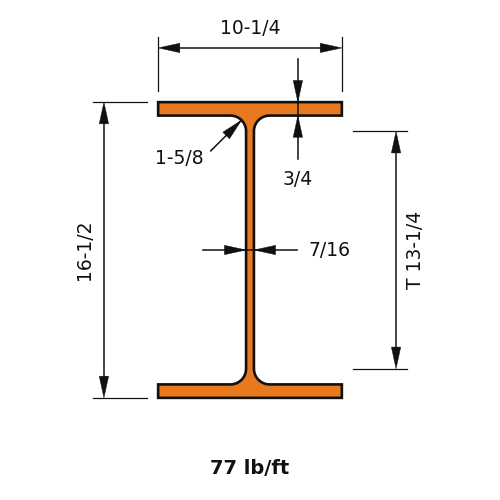

Dimensions

PropertyValue
Nominal Weight (lb/ft)77.0
Depth of Section (in)16.5
Width of Section (in)10.3
Web Thickness (in)0.455
Flange Thickness (in)0.76
Kdet Dimension (in)1.625
T Dimension (in)13.25

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)1110
Zx (in³)150
Sx (in³)134
rx (in)7
Iy (in⁴)138
Zy (in³)41.1
Sy (in³)26.9
ry (in)2.47
J (in⁴)3.57
Cw (in⁶)8590
rts (in)2.85
ho (in)15.7

Full sortable table: Section properties table for this family
