W16x67 – W Shapes - American wide flange beams

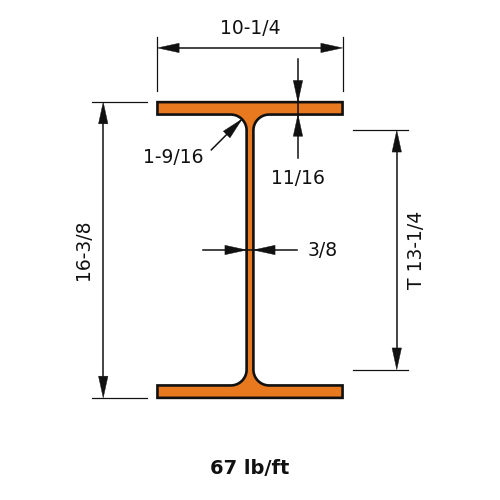

W16x67 is 16.3 in (414 mm) deep with a 10.2 in (259 mm) wide flange, and weighs 67 lb/ft (99.7 kg/m).

Wide-flange (W) shapes are the most widely used structural steel section in North American construction — an I-shaped profile with flanges that are parallel-faced and constant in thickness, connected by a web running the full depth of the section. That shape puts the bulk of the material as far from the neutral axis as possible, giving W shapes an excellent strength-to-weight ratio for resisting bending. They're specified as beams, columns, and everything in between, across virtually every building type — from single-storey warehouses to high-rise frames — and in bridges, platforms, and heavy equipment supports. The wide range of depths and weights available in the AISC series means there's a W shape suited to almost any span or load, from light floor framing through to the heaviest deep columns carrying a high-rise's gravity loads.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)67.0
Depth of Section (in)16.3
Width of Section (in)10.2
Web Thickness (in)0.395
Flange Thickness (in)0.665
Kdet Dimension (in)1.5625
T Dimension (in)13.25

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)954
Zx (in³)130
Sx (in³)117
rx (in)6.96
Iy (in⁴)119
Zy (in³)35.5
Sy (in³)23.2
ry (in)2.46
J (in⁴)2.39
Cw (in⁶)7300
rts (in)2.82
ho (in)15.6

Full sortable table: Section properties table for this family
