W16x89 – W Shapes - American wide flange beams

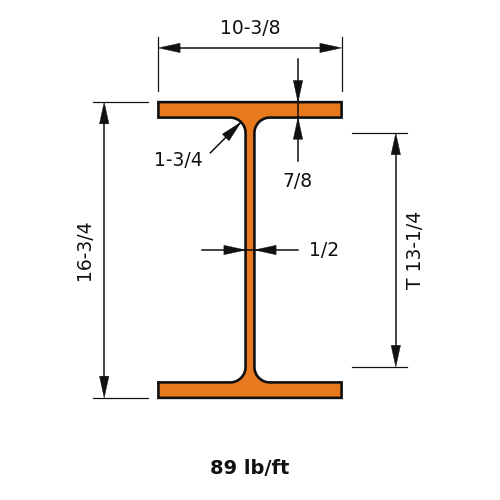

W16x89 is 16.8 in (427 mm) deep with a 10.4 in (264 mm) wide flange, and weighs 89 lb/ft (132.4 kg/m).

Wide-flange (W) shapes are the most widely used structural steel section in North American construction — an I-shaped profile with flanges that are parallel-faced and constant in thickness, connected by a web running the full depth of the section. That shape puts the bulk of the material as far from the neutral axis as possible, giving W shapes an excellent strength-to-weight ratio for resisting bending. They're specified as beams, columns, and everything in between, across virtually every building type — from single-storey warehouses to high-rise frames — and in bridges, platforms, and heavy equipment supports. The wide range of depths and weights available in the AISC series means there's a W shape suited to almost any span or load, from light floor framing through to the heaviest deep columns carrying a high-rise's gravity loads.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)89.0
Depth of Section (in)16.8
Width of Section (in)10.4
Web Thickness (in)0.525
Flange Thickness (in)0.875
Kdet Dimension (in)1.75
T Dimension (in)13.25

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)1300
Zx (in³)175
Sx (in³)155
rx (in)7.05
Iy (in⁴)163
Zy (in³)48.1
Sy (in³)31.4
ry (in)2.49
J (in⁴)5.45
Cw (in⁶)10200
rts (in)2.88
ho (in)15.9
