W16x100 – W Shapes - American wide flange beams

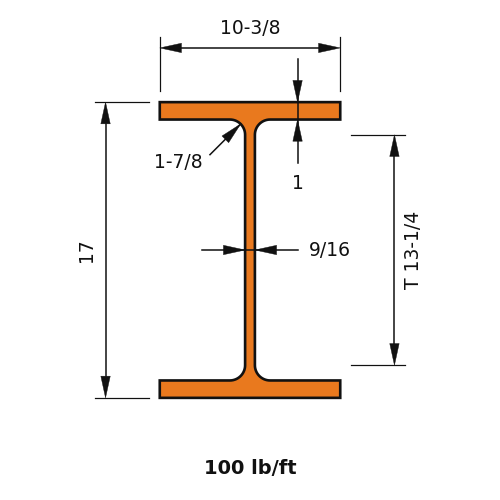

W16x100 is 17 in (432 mm) deep with a 10.4 in (264 mm) wide flange, and weighs 100 lb/ft (148.8 kg/m).

Wide-flange (W) shapes are the most widely used structural steel section in North American construction — an I-shaped profile with flanges that are parallel-faced and constant in thickness, connected by a web running the full depth of the section. That shape puts the bulk of the material as far from the neutral axis as possible, giving W shapes an excellent strength-to-weight ratio for resisting bending. They're specified as beams, columns, and everything in between, across virtually every building type — from single-storey warehouses to high-rise frames — and in bridges, platforms, and heavy equipment supports. The wide range of depths and weights available in the AISC series means there's a W shape suited to almost any span or load, from light floor framing through to the heaviest deep columns carrying a high-rise's gravity loads.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)100.0
Depth of Section (in)17.0
Width of Section (in)10.4
Web Thickness (in)0.585
Flange Thickness (in)0.985
Kdet Dimension (in)1.875
T Dimension (in)13.25

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)1490
Zx (in³)198
Sx (in³)175
rx (in)7.1
Iy (in⁴)186
Zy (in³)54.9
Sy (in³)35.7
ry (in)2.51
J (in⁴)7.73
Cw (in⁶)11900
rts (in)2.92
ho (in)16
