W18x35 – W Shapes - American wide flange beams

W18x35 is 17.7 in (450 mm) deep with a 6 in (152 mm) wide flange, and weighs 35 lb/ft (52.1 kg/m).

Wide-flange (W) shapes are the most widely used structural steel section in North American construction — an I-shaped profile with flanges that are parallel-faced and constant in thickness, connected by a web running the full depth of the section. That shape puts the bulk of the material as far from the neutral axis as possible, giving W shapes an excellent strength-to-weight ratio for resisting bending. They're specified as beams, columns, and everything in between, across virtually every building type — from single-storey warehouses to high-rise frames — and in bridges, platforms, and heavy equipment supports. The wide range of depths and weights available in the AISC series means there's a W shape suited to almost any span or load, from light floor framing through to the heaviest deep columns carrying a high-rise's gravity loads.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

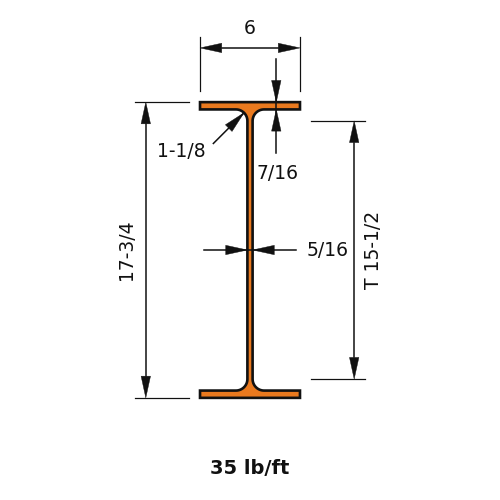

Dimensions

PropertyValue
Nominal Weight (lb/ft)35.0
Depth of Section (in)17.7
Width of Section (in)6.0
Web Thickness (in)0.3
Flange Thickness (in)0.425
Kdet Dimension (in)1.125
T Dimension (in)15.5

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)510
Zx (in³)66.5
Sx (in³)57.6
rx (in)7.04
Iy (in⁴)15.3
Zy (in³)8.06
Sy (in³)5.12
ry (in)1.22
J (in⁴)0.506
Cw (in⁶)1140
rts (in)1.51
ho (in)17.3

Full sortable table: Section properties table for this family
