W18x40 – W Shapes - American wide flange beams

W18x40 is 17.9 in (455 mm) deep with a 6.02 in (153 mm) wide flange, and weighs 40 lb/ft (59.5 kg/m).

Wide-flange (W) shapes are the most widely used structural steel section in North American construction — an I-shaped profile with flanges that are parallel-faced and constant in thickness, connected by a web running the full depth of the section. That shape puts the bulk of the material as far from the neutral axis as possible, giving W shapes an excellent strength-to-weight ratio for resisting bending. They're specified as beams, columns, and everything in between, across virtually every building type — from single-storey warehouses to high-rise frames — and in bridges, platforms, and heavy equipment supports. The wide range of depths and weights available in the AISC series means there's a W shape suited to almost any span or load, from light floor framing through to the heaviest deep columns carrying a high-rise's gravity loads.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

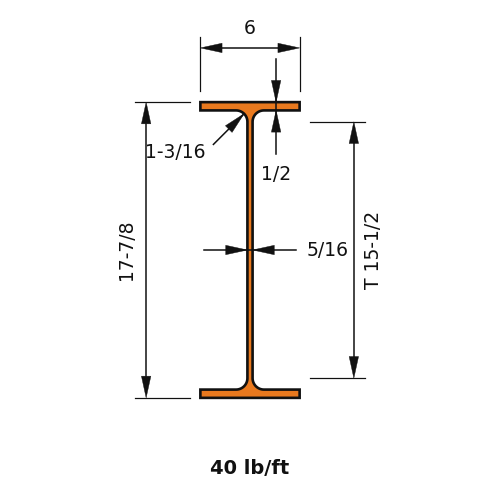

Dimensions

PropertyValue
Nominal Weight (lb/ft)40.0
Depth of Section (in)17.9
Width of Section (in)6.02
Web Thickness (in)0.315
Flange Thickness (in)0.525
Kdet Dimension (in)1.1875
T Dimension (in)15.5

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)612
Zx (in³)78.4
Sx (in³)68.4
rx (in)7.21
Iy (in⁴)19.1
Zy (in³)10
Sy (in³)6.35
ry (in)1.27
J (in⁴)0.81
Cw (in⁶)1440
rts (in)1.56
ho (in)17.4
