W18x158 – W Shapes - American wide flange beams

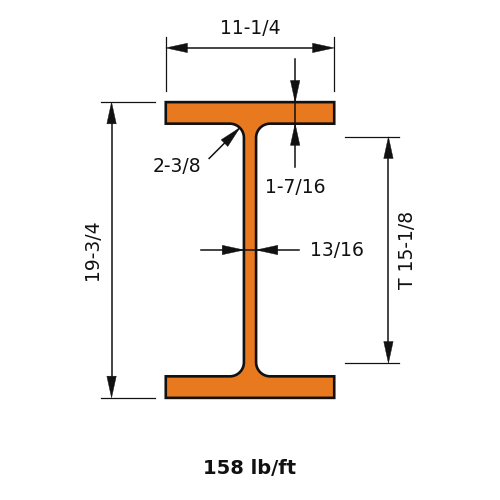

W18x158 is 19.7 in (500 mm) deep with an 11.3 in (287 mm) wide flange, and weighs 158 lb/ft (235.1 kg/m).

Wide-flange (W) shapes are the most widely used structural steel section in North American construction — an I-shaped profile with flanges that are parallel-faced and constant in thickness, connected by a web running the full depth of the section. That shape puts the bulk of the material as far from the neutral axis as possible, giving W shapes an excellent strength-to-weight ratio for resisting bending. They're specified as beams, columns, and everything in between, across virtually every building type — from single-storey warehouses to high-rise frames — and in bridges, platforms, and heavy equipment supports. The wide range of depths and weights available in the AISC series means there's a W shape suited to almost any span or load, from light floor framing through to the heaviest deep columns carrying a high-rise's gravity loads.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)158.0
Depth of Section (in)19.7
Width of Section (in)11.3
Web Thickness (in)0.81
Flange Thickness (in)1.44
Kdet Dimension (in)2.375
T Dimension (in)15.125

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)3060
Zx (in³)356
Sx (in³)310
rx (in)8.12
Iy (in⁴)347
Zy (in³)94.8
Sy (in³)61.4
ry (in)2.74
J (in⁴)25.2
Cw (in⁶)29000
rts (in)3.2
ho (in)18.3
