W18x143 – W Shapes - American wide flange beams

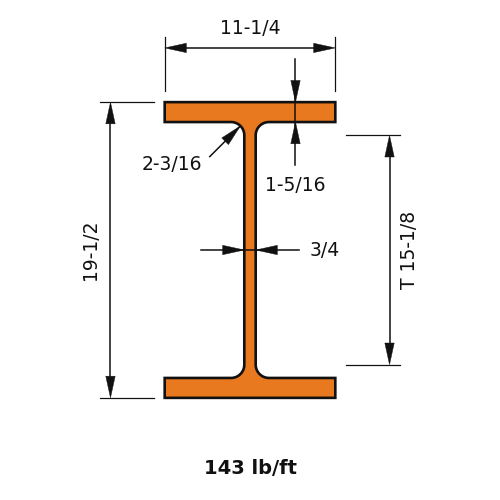

W18x143 is 19.5 in (495 mm) deep with an 11.2 in (284 mm) wide flange, and weighs 143 lb/ft (212.8 kg/m).
Wide-flange (W) shapes are the most widely used structural steel section in North American construction — an I-shaped profile with flanges that are parallel-faced and constant in thickness, connected by a web running the full depth of the section. That shape puts the bulk of the material as far from the neutral axis as possible, giving W shapes an excellent strength-to-weight ratio for resisting bending. They're specified as beams, columns, and everything in between, across virtually every building type — from single-storey warehouses to high-rise frames — and in bridges, platforms, and heavy equipment supports. The wide range of depths and weights available in the AISC series means there's a W shape suited to almost any span or load, from light floor framing through to the heaviest deep columns carrying a high-rise's gravity loads.
AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!
Nearby Sections
Dimensions
| Property | Value |
|---|---|
| Nominal Weight (lb/ft) | 143.0 |
| Depth of Section (in) | 19.5 |
| Width of Section (in) | 11.2 |
| Web Thickness (in) | 0.73 |
| Flange Thickness (in) | 1.32 |
| Kdet Dimension (in) | 2.1875 |
| T Dimension (in) | 15.125 |
Full sortable table: Dimensions table for this family
Section Properties
| Property | Value |
|---|---|
| Ix (in⁴) | 2750 |
| Zx (in³) | 322 |
| Sx (in³) | 282 |
| rx (in) | 8.09 |
| Iy (in⁴) | 311 |
| Zy (in³) | 85.4 |
| Sy (in³) | 55.5 |
| ry (in) | 2.72 |
| J (in⁴) | 19.2 |
| Cw (in⁶) | 25700 |
| rts (in) | 3.17 |
| ho (in) | 18.2 |
Full sortable table: Section properties table for this family
