W18x175 – W Shapes - American wide flange beams

W18x175 is 20 in (508 mm) deep with an 11.4 in (290 mm) wide flange, and weighs 175 lb/ft (260.4 kg/m).

Wide-flange (W) shapes are the most widely used structural steel section in North American construction — an I-shaped profile with flanges that are parallel-faced and constant in thickness, connected by a web running the full depth of the section. That shape puts the bulk of the material as far from the neutral axis as possible, giving W shapes an excellent strength-to-weight ratio for resisting bending. They're specified as beams, columns, and everything in between, across virtually every building type — from single-storey warehouses to high-rise frames — and in bridges, platforms, and heavy equipment supports. The wide range of depths and weights available in the AISC series means there's a W shape suited to almost any span or load, from light floor framing through to the heaviest deep columns carrying a high-rise's gravity loads.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

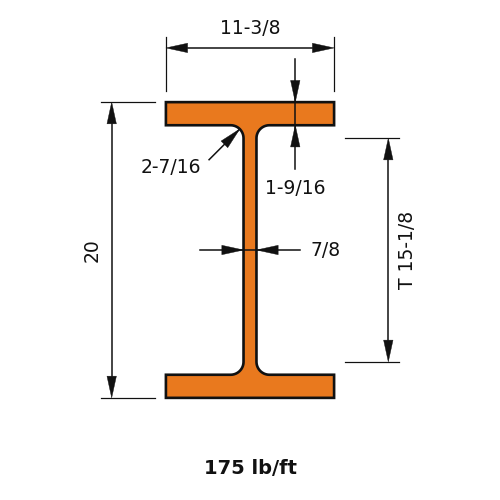

Dimensions

PropertyValue
Nominal Weight (lb/ft)175.0
Depth of Section (in)20.0
Width of Section (in)11.4
Web Thickness (in)0.89
Flange Thickness (in)1.59
Kdet Dimension (in)2.4375
T Dimension (in)15.125

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)3450
Zx (in³)398
Sx (in³)344
rx (in)8.2
Iy (in⁴)391
Zy (in³)106
Sy (in³)68.8
ry (in)2.76
J (in⁴)33.8
Cw (in⁶)33300
rts (in)3.24
ho (in)18.4
