W18x192 – W Shapes - American wide flange beams

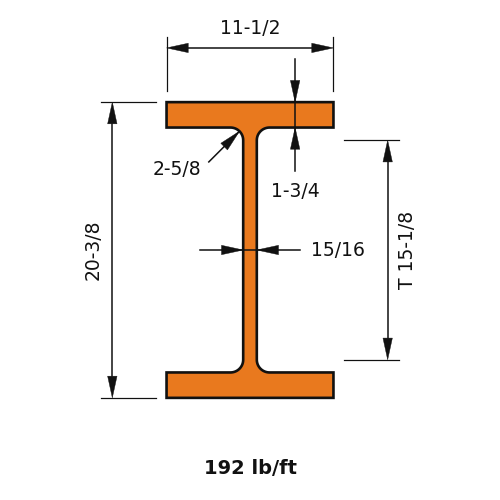

W18x192 is 20.4 in (518 mm) deep with an 11.5 in (292 mm) wide flange, and weighs 192 lb/ft (285.7 kg/m).

Wide-flange (W) shapes are the most widely used structural steel section in North American construction — an I-shaped profile with flanges that are parallel-faced and constant in thickness, connected by a web running the full depth of the section. That shape puts the bulk of the material as far from the neutral axis as possible, giving W shapes an excellent strength-to-weight ratio for resisting bending. They're specified as beams, columns, and everything in between, across virtually every building type — from single-storey warehouses to high-rise frames — and in bridges, platforms, and heavy equipment supports. The wide range of depths and weights available in the AISC series means there's a W shape suited to almost any span or load, from light floor framing through to the heaviest deep columns carrying a high-rise's gravity loads.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)192.0
Depth of Section (in)20.4
Width of Section (in)11.5
Web Thickness (in)0.96
Flange Thickness (in)1.75
Kdet Dimension (in)2.625
T Dimension (in)15.125

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)3870
Zx (in³)442
Sx (in³)380
rx (in)8.28
Iy (in⁴)440
Zy (in³)119
Sy (in³)76.8
ry (in)2.79
J (in⁴)44.7
Cw (in⁶)38000
rts (in)3.28
ho (in)18.7

Full sortable table: Section properties table for this family
