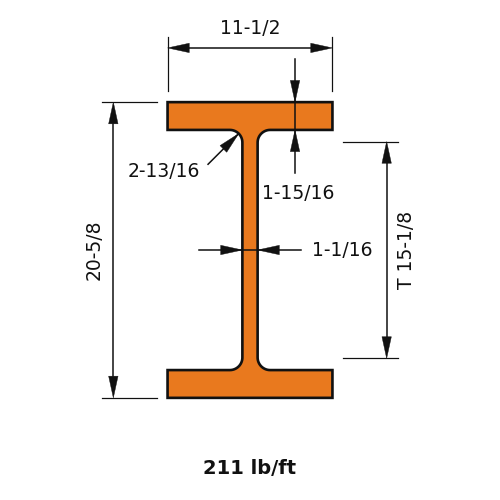

W18x211 – W Shapes - American wide flange beams

W18x211 is 20.7 in (526 mm) deep with an 11.6 in (295 mm) wide flange, and weighs 211 lb/ft (314.0 kg/m).

Wide-flange (W) shapes are the most widely used structural steel section in North American construction — an I-shaped profile with flanges that are parallel-faced and constant in thickness, connected by a web running the full depth of the section. That shape puts the bulk of the material as far from the neutral axis as possible, giving W shapes an excellent strength-to-weight ratio for resisting bending. They're specified as beams, columns, and everything in between, across virtually every building type — from single-storey warehouses to high-rise frames — and in bridges, platforms, and heavy equipment supports. The wide range of depths and weights available in the AISC series means there's a W shape suited to almost any span or load, from light floor framing through to the heaviest deep columns carrying a high-rise's gravity loads.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)211.0
Depth of Section (in)20.7
Width of Section (in)11.6
Web Thickness (in)1.06
Flange Thickness (in)1.91
Kdet Dimension (in)2.8125
T Dimension (in)15.125

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)4330
Zx (in³)490
Sx (in³)419
rx (in)8.35
Iy (in⁴)493
Zy (in³)132
Sy (in³)85.3
ry (in)2.82
J (in⁴)58.6
Cw (in⁶)43400
rts (in)3.32
ho (in)18.8
