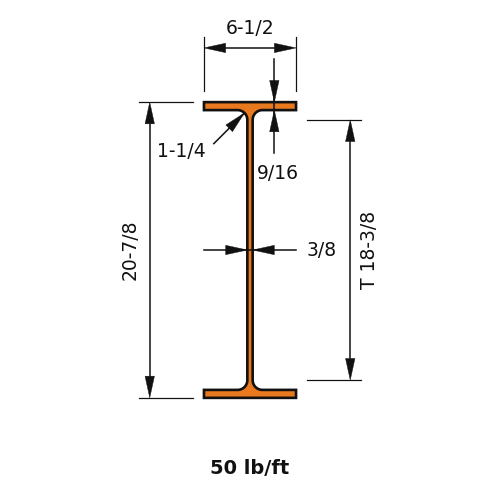

W21x50 – W Shapes - American wide flange beams

W21x50 is 20.8 in (528 mm) deep with a 6.53 in (166 mm) wide flange, and weighs 50 lb/ft (74.4 kg/m).

Wide-flange (W) shapes are the most widely used structural steel section in North American construction — an I-shaped profile with flanges that are parallel-faced and constant in thickness, connected by a web running the full depth of the section. That shape puts the bulk of the material as far from the neutral axis as possible, giving W shapes an excellent strength-to-weight ratio for resisting bending. They're specified as beams, columns, and everything in between, across virtually every building type — from single-storey warehouses to high-rise frames — and in bridges, platforms, and heavy equipment supports. The wide range of depths and weights available in the AISC series means there's a W shape suited to almost any span or load, from light floor framing through to the heaviest deep columns carrying a high-rise's gravity loads.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)50.0
Depth of Section (in)20.8
Width of Section (in)6.53
Web Thickness (in)0.38
Flange Thickness (in)0.535
Kdet Dimension (in)1.25
T Dimension (in)18.375

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)984
Zx (in³)110
Sx (in³)94.5
rx (in)8.18
Iy (in⁴)24.9
Zy (in³)12.2
Sy (in³)7.64
ry (in)1.3
J (in⁴)1.14
Cw (in⁶)2570
rts (in)1.64
ho (in)20.3

Full sortable table: Section properties table for this family
