W21x57 – W Shapes - American wide flange beams

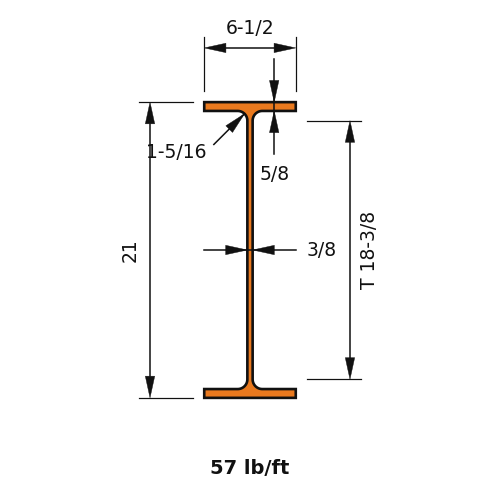

W21x57 is 21.1 in (536 mm) deep with a 6.56 in (167 mm) wide flange, and weighs 57 lb/ft (84.8 kg/m).

Wide-flange (W) shapes are the most widely used structural steel section in North American construction — an I-shaped profile with flanges that are parallel-faced and constant in thickness, connected by a web running the full depth of the section. That shape puts the bulk of the material as far from the neutral axis as possible, giving W shapes an excellent strength-to-weight ratio for resisting bending. They're specified as beams, columns, and everything in between, across virtually every building type — from single-storey warehouses to high-rise frames — and in bridges, platforms, and heavy equipment supports. The wide range of depths and weights available in the AISC series means there's a W shape suited to almost any span or load, from light floor framing through to the heaviest deep columns carrying a high-rise's gravity loads.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)57.0
Depth of Section (in)21.1
Width of Section (in)6.56
Web Thickness (in)0.405
Flange Thickness (in)0.65
Kdet Dimension (in)1.3125
T Dimension (in)18.375

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)1170
Zx (in³)129
Sx (in³)111
rx (in)8.36
Iy (in⁴)30.6
Zy (in³)14.8
Sy (in³)9.35
ry (in)1.35
J (in⁴)1.77
Cw (in⁶)3190
rts (in)1.68
ho (in)20.5

Full sortable table: Section properties table for this family
