W21x44 – W Shapes - American wide flange beams

W21x44 is 20.7 in (526 mm) deep with a 6.5 in (165 mm) wide flange, and weighs 44 lb/ft (65.5 kg/m).

Wide-flange (W) shapes are the most widely used structural steel section in North American construction — an I-shaped profile with flanges that are parallel-faced and constant in thickness, connected by a web running the full depth of the section. That shape puts the bulk of the material as far from the neutral axis as possible, giving W shapes an excellent strength-to-weight ratio for resisting bending. They're specified as beams, columns, and everything in between, across virtually every building type — from single-storey warehouses to high-rise frames — and in bridges, platforms, and heavy equipment supports. The wide range of depths and weights available in the AISC series means there's a W shape suited to almost any span or load, from light floor framing through to the heaviest deep columns carrying a high-rise's gravity loads.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

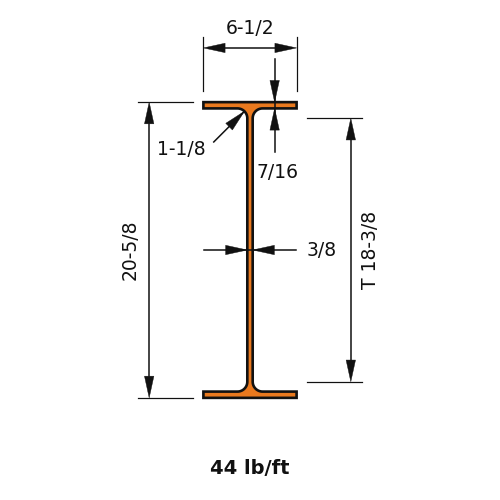

Dimensions

PropertyValue
Nominal Weight (lb/ft)44.0
Depth of Section (in)20.7
Width of Section (in)6.5
Web Thickness (in)0.35
Flange Thickness (in)0.45
Kdet Dimension (in)1.125
T Dimension (in)18.375

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)843
Zx (in³)95.4
Sx (in³)81.6
rx (in)8.06
Iy (in⁴)20.7
Zy (in³)10.2
Sy (in³)6.37
ry (in)1.26
J (in⁴)0.77
Cw (in⁶)2110
rts (in)1.6
ho (in)20.3
