W24x76 – W Shapes - American wide flange beams

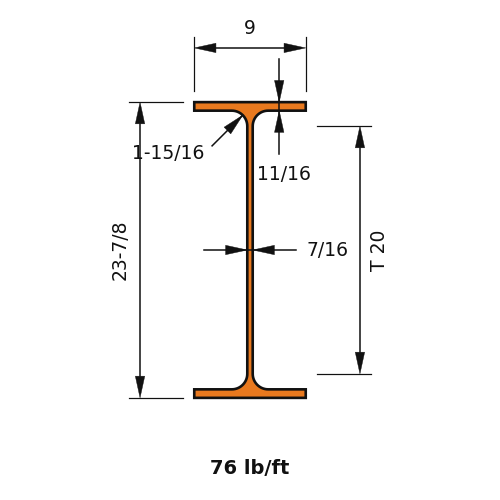

W24x76 is 23.9 in (607 mm) deep with an 8.99 in (228 mm) wide flange, and weighs 76 lb/ft (113.1 kg/m).

Wide-flange (W) shapes are the most widely used structural steel section in North American construction — an I-shaped profile with flanges that are parallel-faced and constant in thickness, connected by a web running the full depth of the section. That shape puts the bulk of the material as far from the neutral axis as possible, giving W shapes an excellent strength-to-weight ratio for resisting bending. They're specified as beams, columns, and everything in between, across virtually every building type — from single-storey warehouses to high-rise frames — and in bridges, platforms, and heavy equipment supports. The wide range of depths and weights available in the AISC series means there's a W shape suited to almost any span or load, from light floor framing through to the heaviest deep columns carrying a high-rise's gravity loads.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)76.0
Depth of Section (in)23.9
Width of Section (in)8.99
Web Thickness (in)0.44
Flange Thickness (in)0.68
Kdet Dimension (in)1.9375
T Dimension (in)20.0

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)2100
Zx (in³)200
Sx (in³)176
rx (in)9.69
Iy (in⁴)82.5
Zy (in³)28.6
Sy (in³)18.4
ry (in)1.92
J (in⁴)2.68
Cw (in⁶)11100
rts (in)2.33
ho (in)23.2

Full sortable table: Section properties table for this family
