W24x84 – W Shapes - American wide flange beams

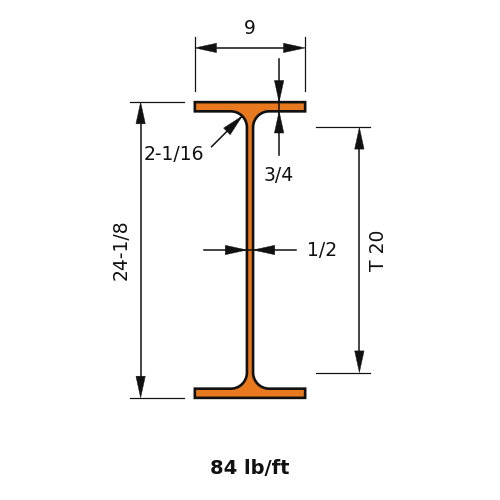

W24x84 is 24.1 in (612 mm) deep with a 9.02 in (229 mm) wide flange, and weighs 84 lb/ft (125.0 kg/m).

Wide-flange (W) shapes are the most widely used structural steel section in North American construction — an I-shaped profile with flanges that are parallel-faced and constant in thickness, connected by a web running the full depth of the section. That shape puts the bulk of the material as far from the neutral axis as possible, giving W shapes an excellent strength-to-weight ratio for resisting bending. They're specified as beams, columns, and everything in between, across virtually every building type — from single-storey warehouses to high-rise frames — and in bridges, platforms, and heavy equipment supports. The wide range of depths and weights available in the AISC series means there's a W shape suited to almost any span or load, from light floor framing through to the heaviest deep columns carrying a high-rise's gravity loads.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)84.0
Depth of Section (in)24.1
Width of Section (in)9.02
Web Thickness (in)0.47
Flange Thickness (in)0.77
Kdet Dimension (in)2.0625
T Dimension (in)20.0

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)2370
Zx (in³)224
Sx (in³)196
rx (in)9.79
Iy (in⁴)94.4
Zy (in³)32.6
Sy (in³)20.9
ry (in)1.95
J (in⁴)3.7
Cw (in⁶)12800
rts (in)2.37
ho (in)23.3
