W24x68 – W Shapes - American wide flange beams

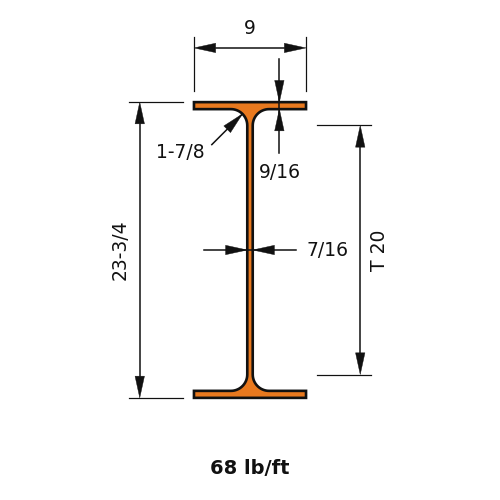

W24x68 is 23.7 in (602 mm) deep with an 8.97 in (228 mm) wide flange, and weighs 68 lb/ft (101.2 kg/m).

Wide-flange (W) shapes are the most widely used structural steel section in North American construction — an I-shaped profile with flanges that are parallel-faced and constant in thickness, connected by a web running the full depth of the section. That shape puts the bulk of the material as far from the neutral axis as possible, giving W shapes an excellent strength-to-weight ratio for resisting bending. They're specified as beams, columns, and everything in between, across virtually every building type — from single-storey warehouses to high-rise frames — and in bridges, platforms, and heavy equipment supports. The wide range of depths and weights available in the AISC series means there's a W shape suited to almost any span or load, from light floor framing through to the heaviest deep columns carrying a high-rise's gravity loads.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)68.0
Depth of Section (in)23.7
Width of Section (in)8.97
Web Thickness (in)0.415
Flange Thickness (in)0.585
Kdet Dimension (in)1.875
T Dimension (in)20.0

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)1830
Zx (in³)177
Sx (in³)154
rx (in)9.55
Iy (in⁴)70.4
Zy (in³)24.5
Sy (in³)15.7
ry (in)1.87
J (in⁴)1.87
Cw (in⁶)9430
rts (in)2.3
ho (in)23.1
