W24x94 – W Shapes - American wide flange beams

W24x94 is 24.3 in (617 mm) deep with a 9.07 in (230 mm) wide flange, and weighs 94 lb/ft (139.9 kg/m).

Wide-flange (W) shapes are the most widely used structural steel section in North American construction — an I-shaped profile with flanges that are parallel-faced and constant in thickness, connected by a web running the full depth of the section. That shape puts the bulk of the material as far from the neutral axis as possible, giving W shapes an excellent strength-to-weight ratio for resisting bending. They're specified as beams, columns, and everything in between, across virtually every building type — from single-storey warehouses to high-rise frames — and in bridges, platforms, and heavy equipment supports. The wide range of depths and weights available in the AISC series means there's a W shape suited to almost any span or load, from light floor framing through to the heaviest deep columns carrying a high-rise's gravity loads.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

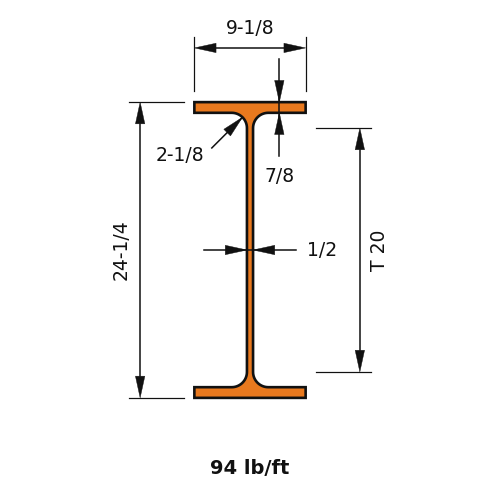

Dimensions

PropertyValue
Nominal Weight (lb/ft)94.0
Depth of Section (in)24.3
Width of Section (in)9.07
Web Thickness (in)0.515
Flange Thickness (in)0.875
Kdet Dimension (in)2.125
T Dimension (in)20.0

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)2700
Zx (in³)254
Sx (in³)222
rx (in)9.87
Iy (in⁴)109
Zy (in³)37.5
Sy (in³)24
ry (in)1.98
J (in⁴)5.26
Cw (in⁶)15000
rts (in)2.4
ho (in)23.4
