W24x162 – W Shapes - American wide flange beams

W24x162 is 25 in (635 mm) deep with a 13 in (330 mm) wide flange, and weighs 162 lb/ft (241.1 kg/m).

Wide-flange (W) shapes are the most widely used structural steel section in North American construction — an I-shaped profile with flanges that are parallel-faced and constant in thickness, connected by a web running the full depth of the section. That shape puts the bulk of the material as far from the neutral axis as possible, giving W shapes an excellent strength-to-weight ratio for resisting bending. They're specified as beams, columns, and everything in between, across virtually every building type — from single-storey warehouses to high-rise frames — and in bridges, platforms, and heavy equipment supports. The wide range of depths and weights available in the AISC series means there's a W shape suited to almost any span or load, from light floor framing through to the heaviest deep columns carrying a high-rise's gravity loads.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

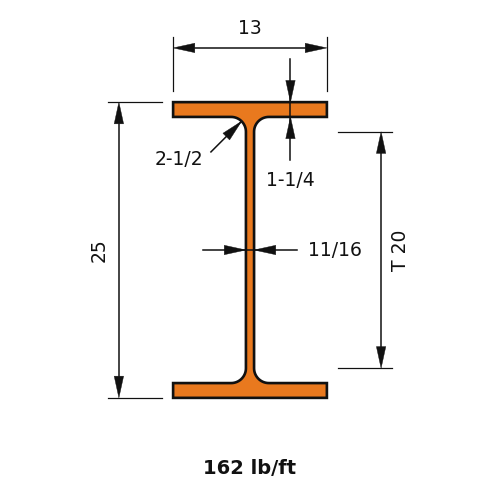

Dimensions

PropertyValue
Nominal Weight (lb/ft)162.0
Depth of Section (in)25.0
Width of Section (in)13.0
Web Thickness (in)0.705
Flange Thickness (in)1.22
Kdet Dimension (in)2.5
T Dimension (in)20.0

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)5170
Zx (in³)468
Sx (in³)414
rx (in)10.4
Iy (in⁴)443
Zy (in³)105
Sy (in³)68.4
ry (in)3.05
J (in⁴)18.5
Cw (in⁶)62600
rts (in)3.57
ho (in)23.8

Full sortable table: Section properties table for this family
