W24x146 – W Shapes - American wide flange beams

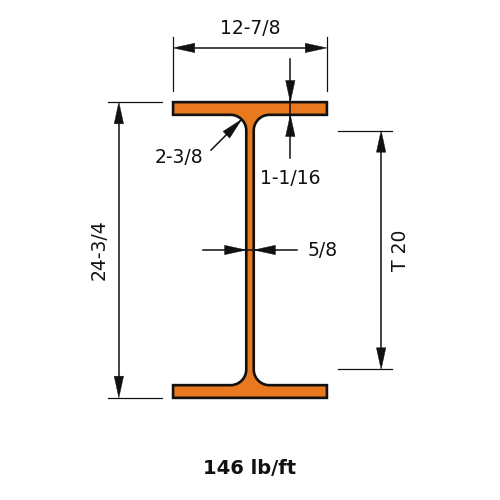

W24x146 is 24.7 in (627 mm) deep with a 12.9 in (328 mm) wide flange, and weighs 146 lb/ft (217.3 kg/m).

Wide-flange (W) shapes are the most widely used structural steel section in North American construction — an I-shaped profile with flanges that are parallel-faced and constant in thickness, connected by a web running the full depth of the section. That shape puts the bulk of the material as far from the neutral axis as possible, giving W shapes an excellent strength-to-weight ratio for resisting bending. They're specified as beams, columns, and everything in between, across virtually every building type — from single-storey warehouses to high-rise frames — and in bridges, platforms, and heavy equipment supports. The wide range of depths and weights available in the AISC series means there's a W shape suited to almost any span or load, from light floor framing through to the heaviest deep columns carrying a high-rise's gravity loads.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)146.0
Depth of Section (in)24.7
Width of Section (in)12.9
Web Thickness (in)0.65
Flange Thickness (in)1.09
Kdet Dimension (in)2.375
T Dimension (in)20.0

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)4580
Zx (in³)418
Sx (in³)371
rx (in)10.3
Iy (in⁴)391
Zy (in³)93.2
Sy (in³)60.5
ry (in)3.01
J (in⁴)13.4
Cw (in⁶)54600
rts (in)3.53
ho (in)23.6
