W24x176 – W Shapes - American wide flange beams

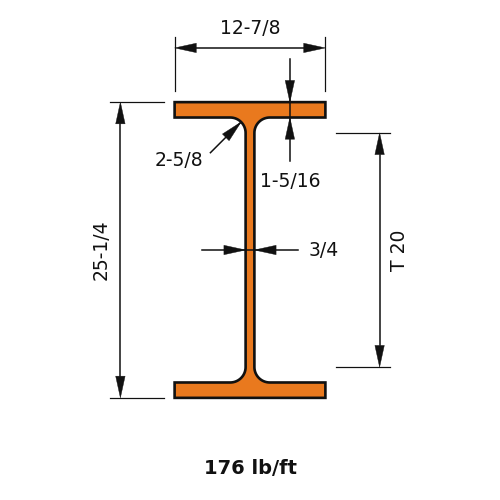

W24x176 is 25.2 in (640 mm) deep with a 12.9 in (328 mm) wide flange, and weighs 176 lb/ft (261.9 kg/m).

Wide-flange (W) shapes are the most widely used structural steel section in North American construction — an I-shaped profile with flanges that are parallel-faced and constant in thickness, connected by a web running the full depth of the section. That shape puts the bulk of the material as far from the neutral axis as possible, giving W shapes an excellent strength-to-weight ratio for resisting bending. They're specified as beams, columns, and everything in between, across virtually every building type — from single-storey warehouses to high-rise frames — and in bridges, platforms, and heavy equipment supports. The wide range of depths and weights available in the AISC series means there's a W shape suited to almost any span or load, from light floor framing through to the heaviest deep columns carrying a high-rise's gravity loads.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)176.0
Depth of Section (in)25.2
Width of Section (in)12.9
Web Thickness (in)0.75
Flange Thickness (in)1.34
Kdet Dimension (in)2.625
T Dimension (in)20.0

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)5680
Zx (in³)511
Sx (in³)450
rx (in)10.5
Iy (in⁴)479
Zy (in³)115
Sy (in³)74.3
ry (in)3.04
J (in⁴)23.9
Cw (in⁶)68400
rts (in)3.57
ho (in)23.9
