W27x235 – W Shapes - American wide flange beams

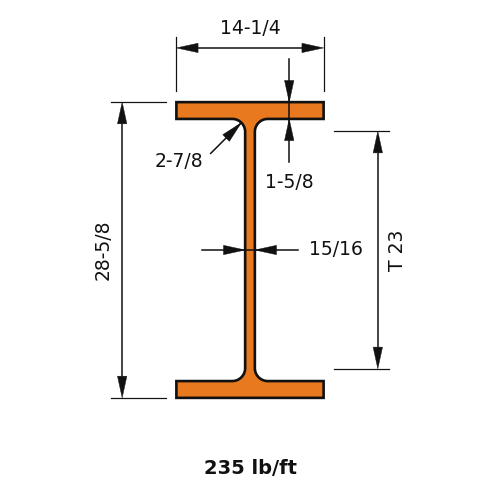

W27x235 is 28.7 in (729 mm) deep with a 14.2 in (361 mm) wide flange, and weighs 235 lb/ft (349.7 kg/m).

Wide-flange (W) shapes are the most widely used structural steel section in North American construction — an I-shaped profile with flanges that are parallel-faced and constant in thickness, connected by a web running the full depth of the section. That shape puts the bulk of the material as far from the neutral axis as possible, giving W shapes an excellent strength-to-weight ratio for resisting bending. They're specified as beams, columns, and everything in between, across virtually every building type — from single-storey warehouses to high-rise frames — and in bridges, platforms, and heavy equipment supports. The wide range of depths and weights available in the AISC series means there's a W shape suited to almost any span or load, from light floor framing through to the heaviest deep columns carrying a high-rise's gravity loads.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)235.0
Depth of Section (in)28.7
Width of Section (in)14.2
Web Thickness (in)0.91
Flange Thickness (in)1.61
Kdet Dimension (in)2.875
T Dimension (in)23.0

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)9700
Zx (in³)772
Sx (in³)677
rx (in)11.8
Iy (in⁴)769
Zy (in³)168
Sy (in³)108
ry (in)3.33
J (in⁴)47
Cw (in⁶)141000
rts (in)3.92
ho (in)27.1

Full sortable table: Section properties table for this family
