W27x258 – W Shapes - American wide flange beams

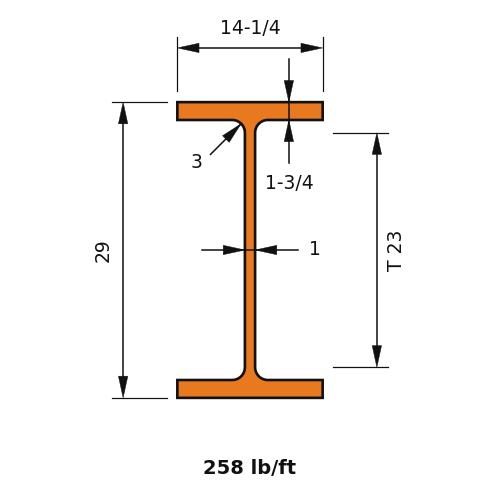

W27x258 is 29 in (737 mm) deep with a 14.3 in (363 mm) wide flange, and weighs 258 lb/ft (383.9 kg/m).

Wide-flange (W) shapes are the most widely used structural steel section in North American construction — an I-shaped profile with flanges that are parallel-faced and constant in thickness, connected by a web running the full depth of the section. That shape puts the bulk of the material as far from the neutral axis as possible, giving W shapes an excellent strength-to-weight ratio for resisting bending. They're specified as beams, columns, and everything in between, across virtually every building type — from single-storey warehouses to high-rise frames — and in bridges, platforms, and heavy equipment supports. The wide range of depths and weights available in the AISC series means there's a W shape suited to almost any span or load, from light floor framing through to the heaviest deep columns carrying a high-rise's gravity loads.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)258.0
Depth of Section (in)29.0
Width of Section (in)14.3
Web Thickness (in)0.98
Flange Thickness (in)1.77
Kdet Dimension (in)3.0
T Dimension (in)23.0

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)10800
Zx (in³)852
Sx (in³)745
rx (in)11.9
Iy (in⁴)859
Zy (in³)187
Sy (in³)120
ry (in)3.36
J (in⁴)61.6
Cw (in⁶)159000
rts (in)3.96
ho (in)27.2

Full sortable table: Section properties table for this family
