W27x217 – W Shapes - American wide flange beams

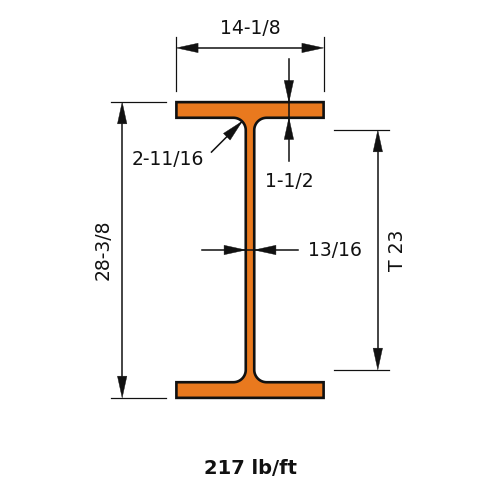

W27x217 is 28.4 in (721 mm) deep with a 14.1 in (358 mm) wide flange, and weighs 217 lb/ft (322.9 kg/m).

Wide-flange (W) shapes are the most widely used structural steel section in North American construction — an I-shaped profile with flanges that are parallel-faced and constant in thickness, connected by a web running the full depth of the section. That shape puts the bulk of the material as far from the neutral axis as possible, giving W shapes an excellent strength-to-weight ratio for resisting bending. They're specified as beams, columns, and everything in between, across virtually every building type — from single-storey warehouses to high-rise frames — and in bridges, platforms, and heavy equipment supports. The wide range of depths and weights available in the AISC series means there's a W shape suited to almost any span or load, from light floor framing through to the heaviest deep columns carrying a high-rise's gravity loads.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)217.0
Depth of Section (in)28.4
Width of Section (in)14.1
Web Thickness (in)0.83
Flange Thickness (in)1.5
Kdet Dimension (in)2.6875
T Dimension (in)23.0

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)8910
Zx (in³)711
Sx (in³)627
rx (in)11.8
Iy (in⁴)704
Zy (in³)154
Sy (in³)100
ry (in)3.32
J (in⁴)37.6
Cw (in⁶)128000
rts (in)3.89
ho (in)26.9

Full sortable table: Section properties table for this family
