W27x281 – W Shapes - American wide flange beams

W27x281 is 29.3 in (744 mm) deep with a 14.4 in (366 mm) wide flange, and weighs 281 lb/ft (418.2 kg/m).

Wide-flange (W) shapes are the most widely used structural steel section in North American construction — an I-shaped profile with flanges that are parallel-faced and constant in thickness, connected by a web running the full depth of the section. That shape puts the bulk of the material as far from the neutral axis as possible, giving W shapes an excellent strength-to-weight ratio for resisting bending. They're specified as beams, columns, and everything in between, across virtually every building type — from single-storey warehouses to high-rise frames — and in bridges, platforms, and heavy equipment supports. The wide range of depths and weights available in the AISC series means there's a W shape suited to almost any span or load, from light floor framing through to the heaviest deep columns carrying a high-rise's gravity loads.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

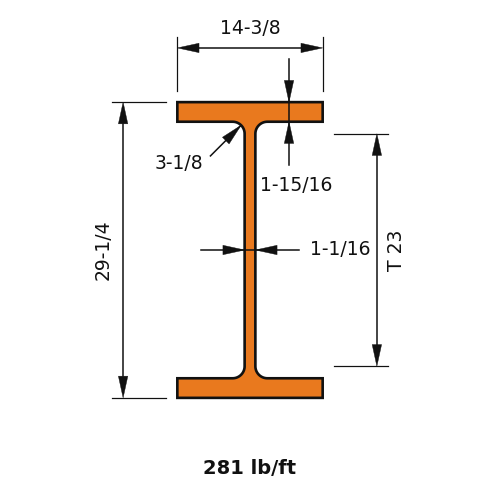

Dimensions

PropertyValue
Nominal Weight (lb/ft)281.0
Depth of Section (in)29.3
Width of Section (in)14.4
Web Thickness (in)1.06
Flange Thickness (in)1.93
Kdet Dimension (in)3.125
T Dimension (in)23.0

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)11900
Zx (in³)936
Sx (in³)814
rx (in)12
Iy (in⁴)953
Zy (in³)206
Sy (in³)133
ry (in)3.39
J (in⁴)79.5
Cw (in⁶)178000
rts (in)4
ho (in)27.4
