W27x307 – W Shapes - American wide flange beams

W27x307 is 29.6 in (752 mm) deep with a 14.4 in (366 mm) wide flange, and weighs 307 lb/ft (456.9 kg/m).

Wide-flange (W) shapes are the most widely used structural steel section in North American construction — an I-shaped profile with flanges that are parallel-faced and constant in thickness, connected by a web running the full depth of the section. That shape puts the bulk of the material as far from the neutral axis as possible, giving W shapes an excellent strength-to-weight ratio for resisting bending. They're specified as beams, columns, and everything in between, across virtually every building type — from single-storey warehouses to high-rise frames — and in bridges, platforms, and heavy equipment supports. The wide range of depths and weights available in the AISC series means there's a W shape suited to almost any span or load, from light floor framing through to the heaviest deep columns carrying a high-rise's gravity loads.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

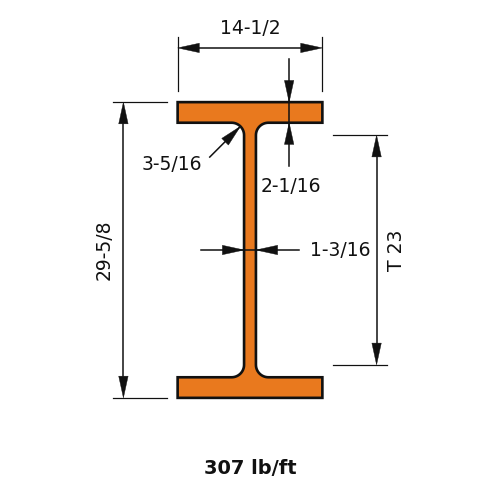

Dimensions

PropertyValue
Nominal Weight (lb/ft)307.0
Depth of Section (in)29.6
Width of Section (in)14.4
Web Thickness (in)1.16
Flange Thickness (in)2.09
Kdet Dimension (in)3.3125
T Dimension (in)23.0

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)13100
Zx (in³)1030
Sx (in³)887
rx (in)12
Iy (in⁴)1050
Zy (in³)227
Sy (in³)146
ry (in)3.41
J (in⁴)101
Cw (in⁶)199000
rts (in)4.04
ho (in)27.5
