W30x124 – W Shapes - American wide flange beams

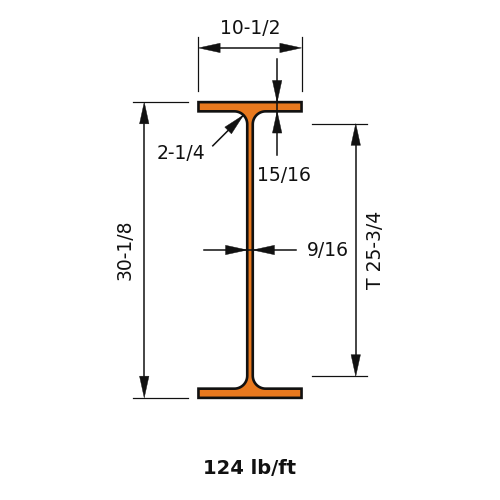

W30x124 is 30.2 in (767 mm) deep with a 10.5 in (267 mm) wide flange, and weighs 124 lb/ft (184.5 kg/m).

Wide-flange (W) shapes are the most widely used structural steel section in North American construction — an I-shaped profile with flanges that are parallel-faced and constant in thickness, connected by a web running the full depth of the section. That shape puts the bulk of the material as far from the neutral axis as possible, giving W shapes an excellent strength-to-weight ratio for resisting bending. They're specified as beams, columns, and everything in between, across virtually every building type — from single-storey warehouses to high-rise frames — and in bridges, platforms, and heavy equipment supports. The wide range of depths and weights available in the AISC series means there's a W shape suited to almost any span or load, from light floor framing through to the heaviest deep columns carrying a high-rise's gravity loads.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)124.0
Depth of Section (in)30.2
Width of Section (in)10.5
Web Thickness (in)0.585
Flange Thickness (in)0.93
Kdet Dimension (in)2.25
T Dimension (in)25.75

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)5360
Zx (in³)408
Sx (in³)355
rx (in)12.1
Iy (in⁴)181
Zy (in³)54
Sy (in³)34.4
ry (in)2.23
J (in⁴)7.99
Cw (in⁶)38600
rts (in)2.73
ho (in)29.3
