W30x116 – W Shapes - American wide flange beams

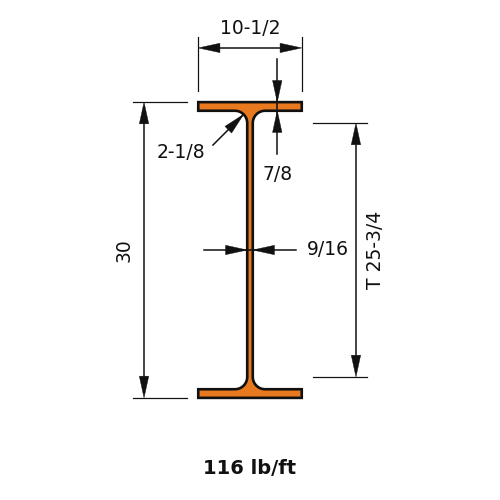

W30x116 is 30 in (762 mm) deep with a 10.5 in (267 mm) wide flange, and weighs 116 lb/ft (172.6 kg/m).

Wide-flange (W) shapes are the most widely used structural steel section in North American construction — an I-shaped profile with flanges that are parallel-faced and constant in thickness, connected by a web running the full depth of the section. That shape puts the bulk of the material as far from the neutral axis as possible, giving W shapes an excellent strength-to-weight ratio for resisting bending. They're specified as beams, columns, and everything in between, across virtually every building type — from single-storey warehouses to high-rise frames — and in bridges, platforms, and heavy equipment supports. The wide range of depths and weights available in the AISC series means there's a W shape suited to almost any span or load, from light floor framing through to the heaviest deep columns carrying a high-rise's gravity loads.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)116.0
Depth of Section (in)30.0
Width of Section (in)10.5
Web Thickness (in)0.565
Flange Thickness (in)0.85
Kdet Dimension (in)2.125
T Dimension (in)25.75

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)4930
Zx (in³)378
Sx (in³)329
rx (in)12
Iy (in⁴)164
Zy (in³)49.2
Sy (in³)31.3
ry (in)2.19
J (in⁴)6.43
Cw (in⁶)34900
rts (in)2.7
ho (in)29.2
