W30x132 – W Shapes - American wide flange beams

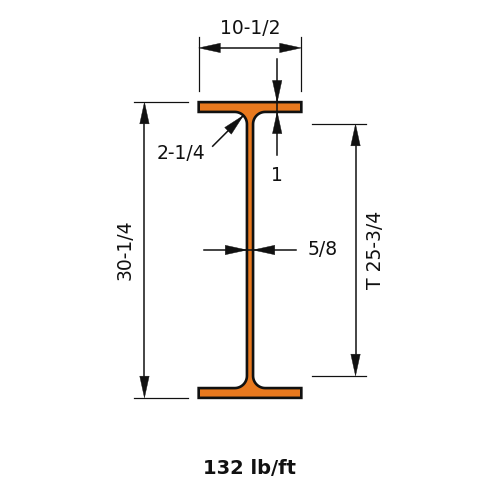

W30x132 is 30.3 in (770 mm) deep with a 10.5 in (267 mm) wide flange, and weighs 132 lb/ft (196.4 kg/m).

Wide-flange (W) shapes are the most widely used structural steel section in North American construction — an I-shaped profile with flanges that are parallel-faced and constant in thickness, connected by a web running the full depth of the section. That shape puts the bulk of the material as far from the neutral axis as possible, giving W shapes an excellent strength-to-weight ratio for resisting bending. They're specified as beams, columns, and everything in between, across virtually every building type — from single-storey warehouses to high-rise frames — and in bridges, platforms, and heavy equipment supports. The wide range of depths and weights available in the AISC series means there's a W shape suited to almost any span or load, from light floor framing through to the heaviest deep columns carrying a high-rise's gravity loads.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)132.0
Depth of Section (in)30.3
Width of Section (in)10.5
Web Thickness (in)0.615
Flange Thickness (in)1.0
Kdet Dimension (in)2.25
T Dimension (in)25.75

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)5770
Zx (in³)437
Sx (in³)380
rx (in)12.2
Iy (in⁴)196
Zy (in³)58.4
Sy (in³)37.2
ry (in)2.25
J (in⁴)9.72
Cw (in⁶)42100
rts (in)2.75
ho (in)29.3
