W30x292 – W Shapes - American wide flange beams

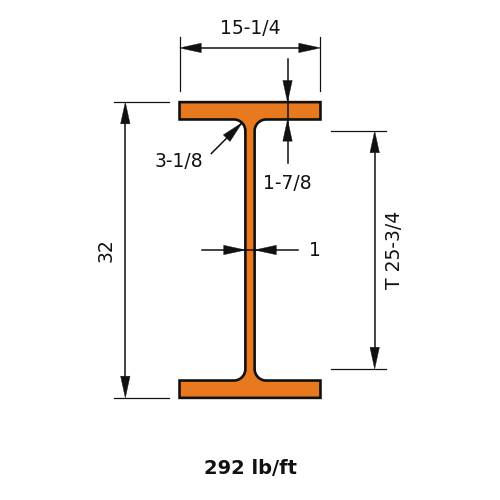

W30x292 is 32 in (813 mm) deep with a 15.3 in (389 mm) wide flange, and weighs 292 lb/ft (434.5 kg/m).

Wide-flange (W) shapes are the most widely used structural steel section in North American construction — an I-shaped profile with flanges that are parallel-faced and constant in thickness, connected by a web running the full depth of the section. That shape puts the bulk of the material as far from the neutral axis as possible, giving W shapes an excellent strength-to-weight ratio for resisting bending. They're specified as beams, columns, and everything in between, across virtually every building type — from single-storey warehouses to high-rise frames — and in bridges, platforms, and heavy equipment supports. The wide range of depths and weights available in the AISC series means there's a W shape suited to almost any span or load, from light floor framing through to the heaviest deep columns carrying a high-rise's gravity loads.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)292.0
Depth of Section (in)32.0
Width of Section (in)15.3
Web Thickness (in)1.02
Flange Thickness (in)1.85
Kdet Dimension (in)3.125
T Dimension (in)25.75

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)14900
Zx (in³)1060
Sx (in³)930
rx (in)13.2
Iy (in⁴)1100
Zy (in³)223
Sy (in³)144
ry (in)3.58
J (in⁴)75.2
Cw (in⁶)250000
rts (in)4.22
ho (in)30.2

Full sortable table: Section properties table for this family
