W30x261 – W Shapes - American wide flange beams

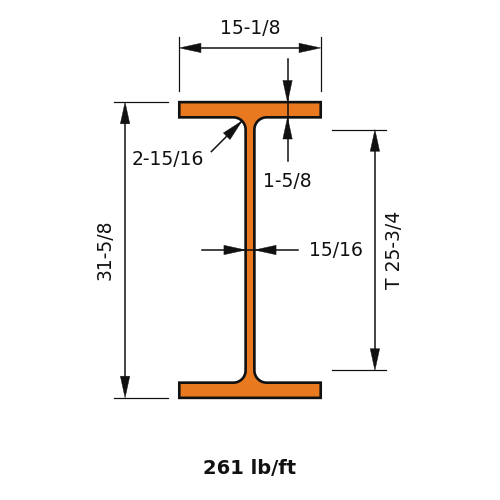

W30x261 is 31.6 in (803 mm) deep with a 15.2 in (386 mm) wide flange, and weighs 261 lb/ft (388.4 kg/m).

Wide-flange (W) shapes are the most widely used structural steel section in North American construction — an I-shaped profile with flanges that are parallel-faced and constant in thickness, connected by a web running the full depth of the section. That shape puts the bulk of the material as far from the neutral axis as possible, giving W shapes an excellent strength-to-weight ratio for resisting bending. They're specified as beams, columns, and everything in between, across virtually every building type — from single-storey warehouses to high-rise frames — and in bridges, platforms, and heavy equipment supports. The wide range of depths and weights available in the AISC series means there's a W shape suited to almost any span or load, from light floor framing through to the heaviest deep columns carrying a high-rise's gravity loads.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)261.0
Depth of Section (in)31.6
Width of Section (in)15.2
Web Thickness (in)0.93
Flange Thickness (in)1.65
Kdet Dimension (in)2.9375
T Dimension (in)25.75

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)13100
Zx (in³)943
Sx (in³)829
rx (in)13.1
Iy (in⁴)959
Zy (in³)196
Sy (in³)127
ry (in)3.53
J (in⁴)54.1
Cw (in⁶)215000
rts (in)4.16
ho (in)30

Full sortable table: Section properties table for this family
