W30x326 – W Shapes - American wide flange beams

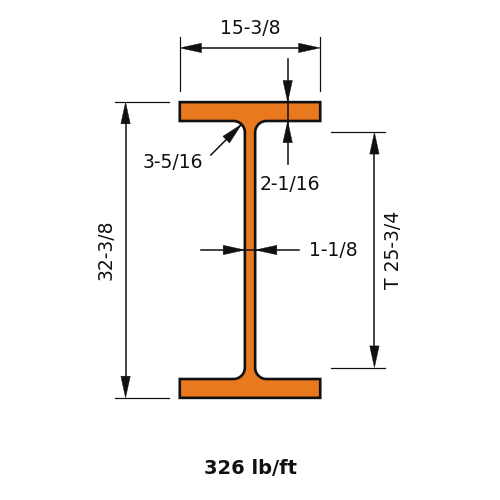

W30x326 is 32.4 in (823 mm) deep with a 15.4 in (391 mm) wide flange, and weighs 326 lb/ft (485.1 kg/m).

Wide-flange (W) shapes are the most widely used structural steel section in North American construction — an I-shaped profile with flanges that are parallel-faced and constant in thickness, connected by a web running the full depth of the section. That shape puts the bulk of the material as far from the neutral axis as possible, giving W shapes an excellent strength-to-weight ratio for resisting bending. They're specified as beams, columns, and everything in between, across virtually every building type — from single-storey warehouses to high-rise frames — and in bridges, platforms, and heavy equipment supports. The wide range of depths and weights available in the AISC series means there's a W shape suited to almost any span or load, from light floor framing through to the heaviest deep columns carrying a high-rise's gravity loads.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)326.0
Depth of Section (in)32.4
Width of Section (in)15.4
Web Thickness (in)1.14
Flange Thickness (in)2.05
Kdet Dimension (in)3.3125
T Dimension (in)25.75

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)16800
Zx (in³)1190
Sx (in³)1040
rx (in)13.2
Iy (in⁴)1240
Zy (in³)252
Sy (in³)162
ry (in)3.6
J (in⁴)103
Cw (in⁶)287000
rts (in)4.26
ho (in)30.4
