W36x247 – W Shapes - American wide flange beams

W36x247 is 36.7 in (932 mm) deep with a 16.5 in (419 mm) wide flange, and weighs 247 lb/ft (367.6 kg/m).

Wide-flange (W) shapes are the most widely used structural steel section in North American construction — an I-shaped profile with flanges that are parallel-faced and constant in thickness, connected by a web running the full depth of the section. That shape puts the bulk of the material as far from the neutral axis as possible, giving W shapes an excellent strength-to-weight ratio for resisting bending. They're specified as beams, columns, and everything in between, across virtually every building type — from single-storey warehouses to high-rise frames — and in bridges, platforms, and heavy equipment supports. The wide range of depths and weights available in the AISC series means there's a W shape suited to almost any span or load, from light floor framing through to the heaviest deep columns carrying a high-rise's gravity loads.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

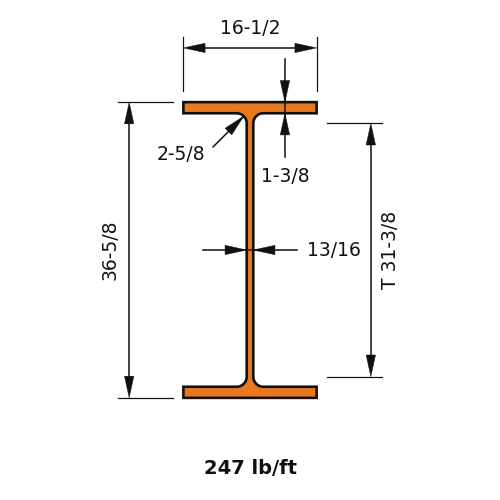

Dimensions

PropertyValue
Nominal Weight (lb/ft)247.0
Depth of Section (in)36.7
Width of Section (in)16.5
Web Thickness (in)0.8
Flange Thickness (in)1.35
Kdet Dimension (in)2.625
T Dimension (in)31.375

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)16700
Zx (in³)1030
Sx (in³)913
rx (in)15.2
Iy (in⁴)1010
Zy (in³)190
Sy (in³)123
ry (in)3.74
J (in⁴)34.7
Cw (in⁶)316000
rts (in)4.42
ho (in)35.4
