W36x231 – W Shapes - American wide flange beams

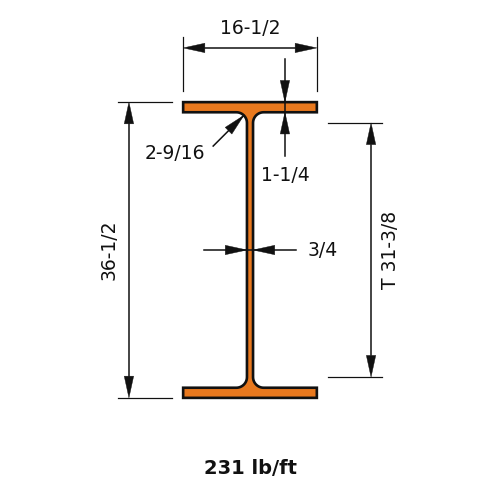

W36x231 is 36.5 in (927 mm) deep with a 16.5 in (419 mm) wide flange, and weighs 231 lb/ft (343.8 kg/m).

Wide-flange (W) shapes are the most widely used structural steel section in North American construction — an I-shaped profile with flanges that are parallel-faced and constant in thickness, connected by a web running the full depth of the section. That shape puts the bulk of the material as far from the neutral axis as possible, giving W shapes an excellent strength-to-weight ratio for resisting bending. They're specified as beams, columns, and everything in between, across virtually every building type — from single-storey warehouses to high-rise frames — and in bridges, platforms, and heavy equipment supports. The wide range of depths and weights available in the AISC series means there's a W shape suited to almost any span or load, from light floor framing through to the heaviest deep columns carrying a high-rise's gravity loads.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)231.0
Depth of Section (in)36.5
Width of Section (in)16.5
Web Thickness (in)0.76
Flange Thickness (in)1.26
Kdet Dimension (in)2.5625
T Dimension (in)31.375

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)15600
Zx (in³)963
Sx (in³)854
rx (in)15.1
Iy (in⁴)940
Zy (in³)176
Sy (in³)114
ry (in)3.71
J (in⁴)28.7
Cw (in⁶)292000
rts (in)4.4
ho (in)35.2

Full sortable table: Section properties table for this family
