W36x262 – W Shapes - American wide flange beams

W36x262 is 36.9 in (937 mm) deep with a 16.6 in (422 mm) wide flange, and weighs 262 lb/ft (389.9 kg/m).

Wide-flange (W) shapes are the most widely used structural steel section in North American construction — an I-shaped profile with flanges that are parallel-faced and constant in thickness, connected by a web running the full depth of the section. That shape puts the bulk of the material as far from the neutral axis as possible, giving W shapes an excellent strength-to-weight ratio for resisting bending. They're specified as beams, columns, and everything in between, across virtually every building type — from single-storey warehouses to high-rise frames — and in bridges, platforms, and heavy equipment supports. The wide range of depths and weights available in the AISC series means there's a W shape suited to almost any span or load, from light floor framing through to the heaviest deep columns carrying a high-rise's gravity loads.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

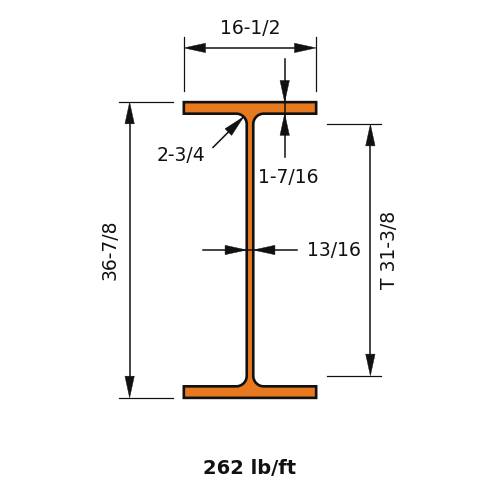

Dimensions

PropertyValue
Nominal Weight (lb/ft)262.0
Depth of Section (in)36.9
Width of Section (in)16.6
Web Thickness (in)0.84
Flange Thickness (in)1.44
Kdet Dimension (in)2.75
T Dimension (in)31.375

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)17900
Zx (in³)1100
Sx (in³)972
rx (in)15.3
Iy (in⁴)1090
Zy (in³)204
Sy (in³)132
ry (in)3.76
J (in⁴)41.6
Cw (in⁶)342000
rts (in)4.46
ho (in)35.5
