W36x282 – W Shapes - American wide flange beams

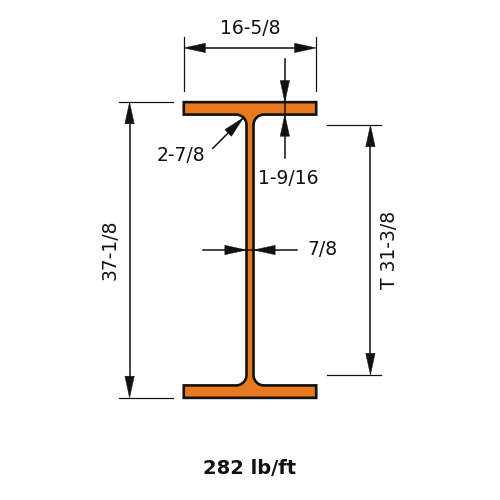

W36x282 is 37.1 in (942 mm) deep with a 16.6 in (422 mm) wide flange, and weighs 282 lb/ft (419.7 kg/m).

Wide-flange (W) shapes are the most widely used structural steel section in North American construction — an I-shaped profile with flanges that are parallel-faced and constant in thickness, connected by a web running the full depth of the section. That shape puts the bulk of the material as far from the neutral axis as possible, giving W shapes an excellent strength-to-weight ratio for resisting bending. They're specified as beams, columns, and everything in between, across virtually every building type — from single-storey warehouses to high-rise frames — and in bridges, platforms, and heavy equipment supports. The wide range of depths and weights available in the AISC series means there's a W shape suited to almost any span or load, from light floor framing through to the heaviest deep columns carrying a high-rise's gravity loads.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)282.0
Depth of Section (in)37.1
Width of Section (in)16.6
Web Thickness (in)0.885
Flange Thickness (in)1.57
Kdet Dimension (in)2.875
T Dimension (in)31.375

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)19600
Zx (in³)1190
Sx (in³)1050
rx (in)15.4
Iy (in⁴)1200
Zy (in³)223
Sy (in³)144
ry (in)3.8
J (in⁴)52.7
Cw (in⁶)378000
rts (in)4.5
ho (in)35.5

Full sortable table: Section properties table for this family
