W36x361 – W Shapes - American wide flange beams

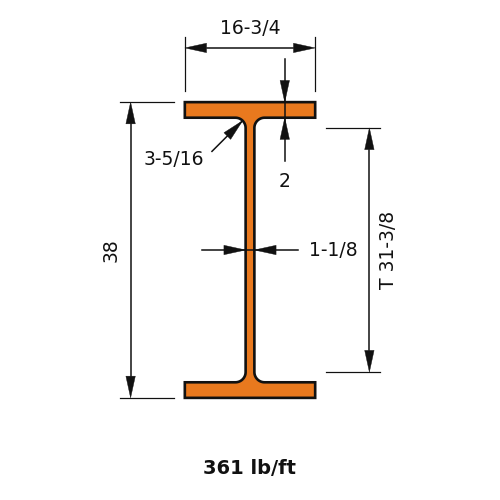

W36x361 is 38 in (965 mm) deep with a 16.7 in (424 mm) wide flange, and weighs 361 lb/ft (537.2 kg/m).

Wide-flange (W) shapes are the most widely used structural steel section in North American construction — an I-shaped profile with flanges that are parallel-faced and constant in thickness, connected by a web running the full depth of the section. That shape puts the bulk of the material as far from the neutral axis as possible, giving W shapes an excellent strength-to-weight ratio for resisting bending. They're specified as beams, columns, and everything in between, across virtually every building type — from single-storey warehouses to high-rise frames — and in bridges, platforms, and heavy equipment supports. The wide range of depths and weights available in the AISC series means there's a W shape suited to almost any span or load, from light floor framing through to the heaviest deep columns carrying a high-rise's gravity loads.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)361.0
Depth of Section (in)38.0
Width of Section (in)16.7
Web Thickness (in)1.12
Flange Thickness (in)2.01
Kdet Dimension (in)3.3125
T Dimension (in)31.375

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)25700
Zx (in³)1550
Sx (in³)1350
rx (in)15.6
Iy (in⁴)1570
Zy (in³)293
Sy (in³)188
ry (in)3.85
J (in⁴)109
Cw (in⁶)509000
rts (in)4.58
ho (in)36
