W36x330 – W Shapes - American wide flange beams

W36x330 is 37.7 in (958 mm) deep with a 16.6 in (422 mm) wide flange, and weighs 330 lb/ft (491.1 kg/m).

Wide-flange (W) shapes are the most widely used structural steel section in North American construction — an I-shaped profile with flanges that are parallel-faced and constant in thickness, connected by a web running the full depth of the section. That shape puts the bulk of the material as far from the neutral axis as possible, giving W shapes an excellent strength-to-weight ratio for resisting bending. They're specified as beams, columns, and everything in between, across virtually every building type — from single-storey warehouses to high-rise frames — and in bridges, platforms, and heavy equipment supports. The wide range of depths and weights available in the AISC series means there's a W shape suited to almost any span or load, from light floor framing through to the heaviest deep columns carrying a high-rise's gravity loads.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

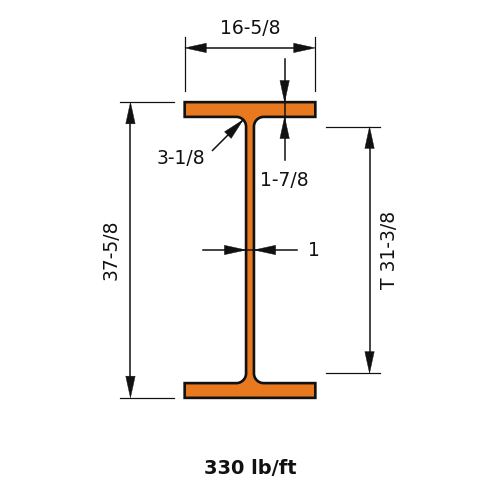

Dimensions

PropertyValue
Nominal Weight (lb/ft)330.0
Depth of Section (in)37.7
Width of Section (in)16.6
Web Thickness (in)1.02
Flange Thickness (in)1.85
Kdet Dimension (in)3.125
T Dimension (in)31.375

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)23300
Zx (in³)1410
Sx (in³)1240
rx (in)15.5
Iy (in⁴)1420
Zy (in³)265
Sy (in³)171
ry (in)3.83
J (in⁴)84.3
Cw (in⁶)456000
rts (in)4.53
ho (in)35.9

Full sortable table: Section properties table for this family
