W36x395 – W Shapes - American wide flange beams
W36x395 is 38.4 in (975 mm) deep with a 16.8 in (427 mm) wide flange, and weighs 395 lb/ft (587.8 kg/m).
Wide-flange (W) shapes are the most widely used structural steel section in North American construction — an I-shaped profile with flanges that are parallel-faced and constant in thickness, connected by a web running the full depth of the section. That shape puts the bulk of the material as far from the neutral axis as possible, giving W shapes an excellent strength-to-weight ratio for resisting bending. They're specified as beams, columns, and everything in between, across virtually every building type — from single-storey warehouses to high-rise frames — and in bridges, platforms, and heavy equipment supports. The wide range of depths and weights available in the AISC series means there's a W shape suited to almost any span or load, from light floor framing through to the heaviest deep columns carrying a high-rise's gravity loads.
AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!
Nearby Sections

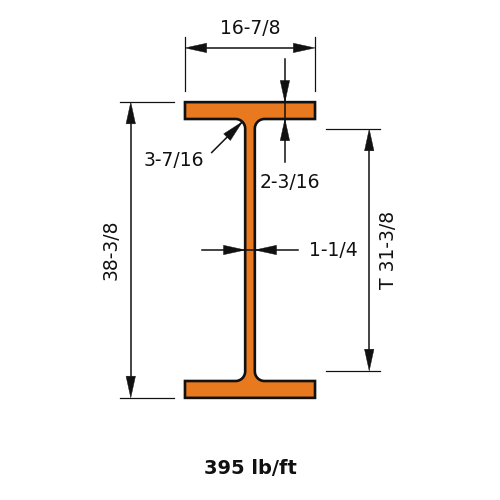

Dimensions
| Property | Value |
|---|---|
| Nominal Weight (lb/ft) | 395.0 |
| Depth of Section (in) | 38.4 |
| Width of Section (in) | 16.8 |
| Web Thickness (in) | 1.22 |
| Flange Thickness (in) | 2.2 |
| Kdet Dimension (in) | 3.4375 |
| T Dimension (in) | 31.375 |
Full sortable table: Dimensions table for this family
Section Properties
| Property | Value |
|---|---|
| Ix (in⁴) | 28500 |
| Zx (in³) | 1710 |
| Sx (in³) | 1490 |
| rx (in) | 15.7 |
| Iy (in⁴) | 1750 |
| Zy (in³) | 325 |
| Sy (in³) | 208 |
| ry (in) | 3.88 |
| J (in⁴) | 142 |
| Cw (in⁶) | 575000 |
| rts (in) | 4.61 |
| ho (in) | 36.2 |
Full sortable table: Section properties table for this family
