W36x441 – W Shapes - American wide flange beams

W36x441 is 38.9 in (988 mm) deep with a 17 in (432 mm) wide flange, and weighs 441 lb/ft (656.3 kg/m).

Wide-flange (W) shapes are the most widely used structural steel section in North American construction — an I-shaped profile with flanges that are parallel-faced and constant in thickness, connected by a web running the full depth of the section. That shape puts the bulk of the material as far from the neutral axis as possible, giving W shapes an excellent strength-to-weight ratio for resisting bending. They're specified as beams, columns, and everything in between, across virtually every building type — from single-storey warehouses to high-rise frames — and in bridges, platforms, and heavy equipment supports. The wide range of depths and weights available in the AISC series means there's a W shape suited to almost any span or load, from light floor framing through to the heaviest deep columns carrying a high-rise's gravity loads.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

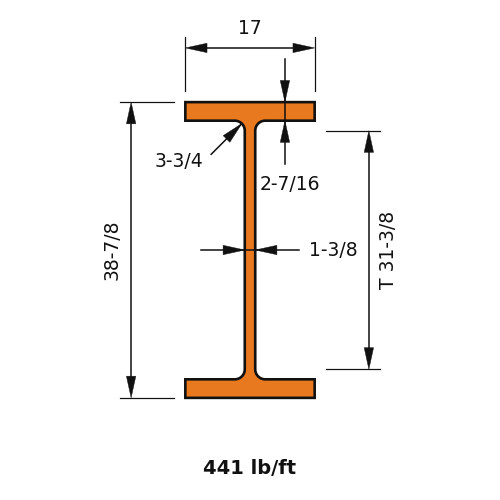

Dimensions

PropertyValue
Nominal Weight (lb/ft)441.0
Depth of Section (in)38.9
Width of Section (in)17.0
Web Thickness (in)1.36
Flange Thickness (in)2.44
Kdet Dimension (in)3.75
T Dimension (in)31.375

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)32100
Zx (in³)1910
Sx (in³)1650
rx (in)15.7
Iy (in⁴)1990
Zy (in³)368
Sy (in³)235
ry (in)3.92
J (in⁴)194
Cw (in⁶)661000
rts (in)4.69
ho (in)36.5

Full sortable table: Section properties table for this family
