W40x235 – W Shapes - American wide flange beams

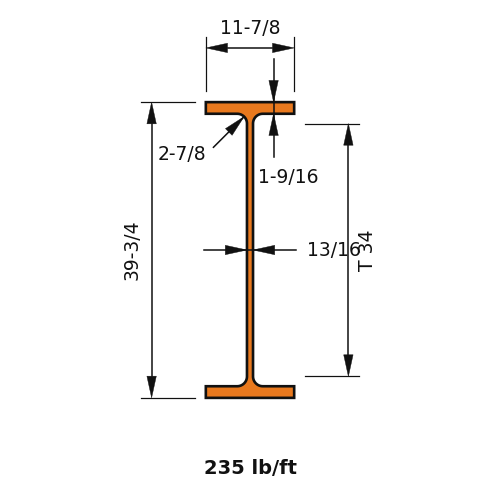

W40x235 is 39.7 in (1008 mm) deep with an 11.9 in (302 mm) wide flange, and weighs 235 lb/ft (349.7 kg/m).

Wide-flange (W) shapes are the most widely used structural steel section in North American construction — an I-shaped profile with flanges that are parallel-faced and constant in thickness, connected by a web running the full depth of the section. That shape puts the bulk of the material as far from the neutral axis as possible, giving W shapes an excellent strength-to-weight ratio for resisting bending. They're specified as beams, columns, and everything in between, across virtually every building type — from single-storey warehouses to high-rise frames — and in bridges, platforms, and heavy equipment supports. The wide range of depths and weights available in the AISC series means there's a W shape suited to almost any span or load, from light floor framing through to the heaviest deep columns carrying a high-rise's gravity loads.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)235.0
Depth of Section (in)39.7
Width of Section (in)11.9
Web Thickness (in)0.83
Flange Thickness (in)1.58
Kdet Dimension (in)2.875
T Dimension (in)34.0

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)17400
Zx (in³)1010
Sx (in³)875
rx (in)15.9
Iy (in⁴)444
Zy (in³)118
Sy (in³)74.6
ry (in)2.54
J (in⁴)41.3
Cw (in⁶)161000
rts (in)3.11
ho (in)38.1
