W40x264 – W Shapes - American wide flange beams
W40x264 is 40 in (1016 mm) deep with an 11.9 in (302 mm) wide flange, and weighs 264 lb/ft (392.9 kg/m).
Wide-flange (W) shapes are the most widely used structural steel section in North American construction — an I-shaped profile with flanges that are parallel-faced and constant in thickness, connected by a web running the full depth of the section. That shape puts the bulk of the material as far from the neutral axis as possible, giving W shapes an excellent strength-to-weight ratio for resisting bending. They're specified as beams, columns, and everything in between, across virtually every building type — from single-storey warehouses to high-rise frames — and in bridges, platforms, and heavy equipment supports. The wide range of depths and weights available in the AISC series means there's a W shape suited to almost any span or load, from light floor framing through to the heaviest deep columns carrying a high-rise's gravity loads.
AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!
Nearby Sections

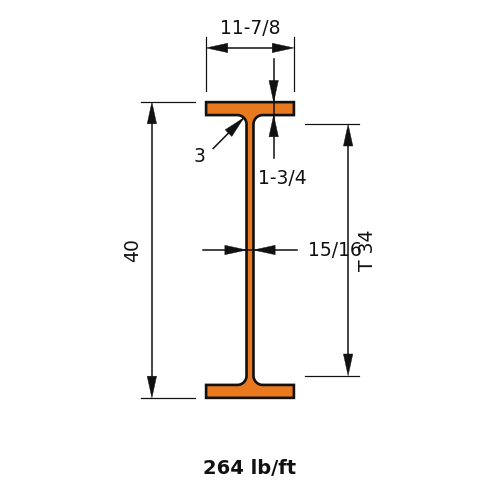

Dimensions
| Property | Value |
|---|---|
| Nominal Weight (lb/ft) | 264.0 |
| Depth of Section (in) | 40.0 |
| Width of Section (in) | 11.9 |
| Web Thickness (in) | 0.96 |
| Flange Thickness (in) | 1.73 |
| Kdet Dimension (in) | 3.0 |
| T Dimension (in) | 34.0 |
Full sortable table: Dimensions table for this family
Section Properties
| Property | Value |
|---|---|
| Ix (in⁴) | 19400 |
| Zx (in³) | 1130 |
| Sx (in³) | 971 |
| rx (in) | 15.8 |
| Iy (in⁴) | 493 |
| Zy (in³) | 132 |
| Sy (in³) | 82.6 |
| ry (in) | 2.52 |
| J (in⁴) | 56.1 |
| Cw (in⁶) | 181000 |
| rts (in) | 3.12 |
| ho (in) | 38.3 |
Full sortable table: Section properties table for this family
