W40x211 – W Shapes - American wide flange beams

W40x211 is 39.4 in (1001 mm) deep with an 11.8 in (300 mm) wide flange, and weighs 211 lb/ft (314.0 kg/m).

Wide-flange (W) shapes are the most widely used structural steel section in North American construction — an I-shaped profile with flanges that are parallel-faced and constant in thickness, connected by a web running the full depth of the section. That shape puts the bulk of the material as far from the neutral axis as possible, giving W shapes an excellent strength-to-weight ratio for resisting bending. They're specified as beams, columns, and everything in between, across virtually every building type — from single-storey warehouses to high-rise frames — and in bridges, platforms, and heavy equipment supports. The wide range of depths and weights available in the AISC series means there's a W shape suited to almost any span or load, from light floor framing through to the heaviest deep columns carrying a high-rise's gravity loads.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

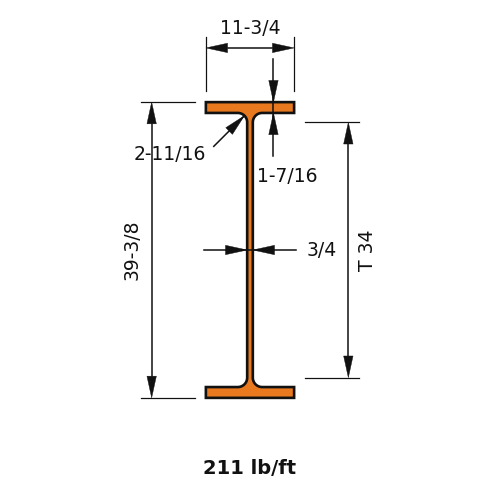

Dimensions

PropertyValue
Nominal Weight (lb/ft)211.0
Depth of Section (in)39.4
Width of Section (in)11.8
Web Thickness (in)0.75
Flange Thickness (in)1.42
Kdet Dimension (in)2.6875
T Dimension (in)34.0

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)15500
Zx (in³)906
Sx (in³)786
rx (in)15.8
Iy (in⁴)390
Zy (in³)105
Sy (in³)66.1
ry (in)2.51
J (in⁴)30.4
Cw (in⁶)141000
rts (in)3.07
ho (in)38

Full sortable table: Section properties table for this family
