W40x278 – W Shapes - American wide flange beams

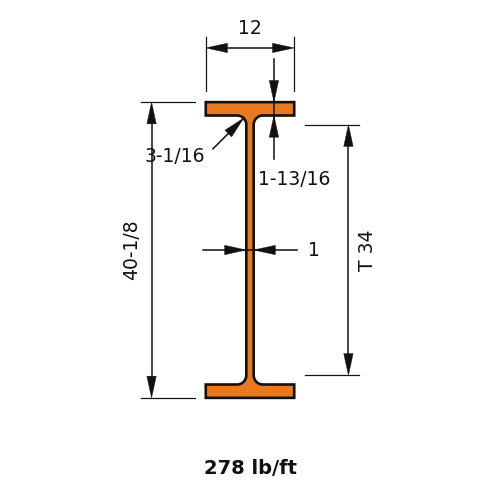

W40x278 is 40.2 in (1021 mm) deep with a 12 in (305 mm) wide flange, and weighs 278 lb/ft (413.7 kg/m).

Wide-flange (W) shapes are the most widely used structural steel section in North American construction — an I-shaped profile with flanges that are parallel-faced and constant in thickness, connected by a web running the full depth of the section. That shape puts the bulk of the material as far from the neutral axis as possible, giving W shapes an excellent strength-to-weight ratio for resisting bending. They're specified as beams, columns, and everything in between, across virtually every building type — from single-storey warehouses to high-rise frames — and in bridges, platforms, and heavy equipment supports. The wide range of depths and weights available in the AISC series means there's a W shape suited to almost any span or load, from light floor framing through to the heaviest deep columns carrying a high-rise's gravity loads.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)278.0
Depth of Section (in)40.2
Width of Section (in)12.0
Web Thickness (in)1.03
Flange Thickness (in)1.81
Kdet Dimension (in)3.0625
T Dimension (in)34.0

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)20500
Zx (in³)1190
Sx (in³)1020
rx (in)15.8
Iy (in⁴)521
Zy (in³)140
Sy (in³)87.1
ry (in)2.52
J (in⁴)65
Cw (in⁶)192000
rts (in)3.13
ho (in)38.4
