ST1.5x3.75 – ST Shapes

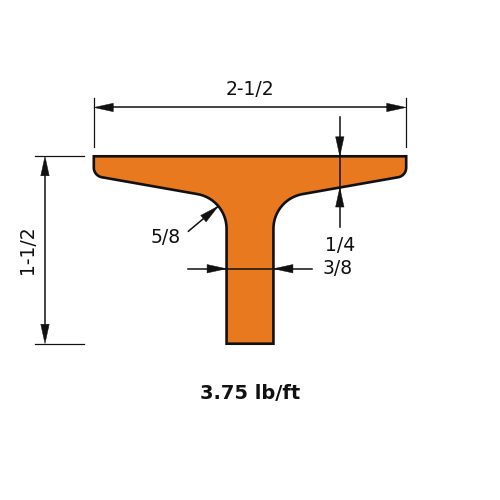

ST1.5x3.75 is a tee 1.5 in (38 mm) deep with a 2.51 in (64 mm) flange, weighing 3.75 lb/ft (5.6 kg/m).

ST shapes are structural tees split from S shapes, inheriting the tapered flange proportions of their S-shape parent. They're specified for the same general tee applications as WT and MT shapes — truss and joist chords, built-up sections — in situations where the specific proportions of a split S shape suit the design, including retrofit or matching work on structures originally built with S-shape members.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)3.75
Depth of Section (in)1.5
Width of Section (in)2.51
Web Thickness (in)0.349
Flange Thickness (in)0.26
Kdet Dimension (in)0.625

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)0.2
Zx (in³)0.351
Sx (in³)0.187
rx (in)0.426
Iy (in⁴)0.289
Zy (in³)0.411
Sy (in³)0.23
ry (in)0.513
J (in⁴)0.0432
Cw (in⁶)0.00496
ro (in)0.732
H (-)0.83
