ST2x3.85 – ST Shapes

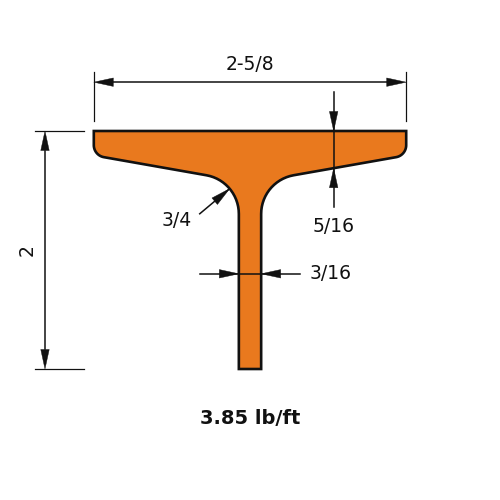

ST2x3.85 is a tee 2 in (51 mm) deep with a 2.66 in (68 mm) flange, weighing 3.85 lb/ft (5.7 kg/m).

ST shapes are structural tees split from S shapes, inheriting the tapered flange proportions of their S-shape parent. They're specified for the same general tee applications as WT and MT shapes — truss and joist chords, built-up sections — in situations where the specific proportions of a split S shape suit the design, including retrofit or matching work on structures originally built with S-shape members.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)3.85
Depth of Section (in)2.0
Width of Section (in)2.66
Web Thickness (in)0.193
Flange Thickness (in)0.293
Kdet Dimension (in)0.75

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)0.307
Zx (in³)0.381
Sx (in³)0.198
rx (in)0.522
Iy (in⁴)0.374
Zy (in³)0.485
Sy (in³)0.281
ry (in)0.576
J (in⁴)0.0364
Cw (in⁶)0.00457
ro (in)0.834
H (-)0.869

Full sortable table: Section properties table for this family
