ST1.5x2.85 – ST Shapes

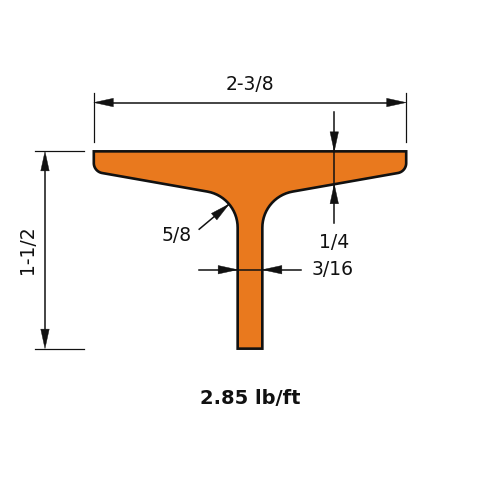

ST1.5x2.85 is a tee 1.5 in (38 mm) deep with a 2.33 in (59 mm) flange, weighing 2.85 lb/ft (4.2 kg/m).
ST shapes are structural tees split from S shapes, inheriting the tapered flange proportions of their S-shape parent. They're specified for the same general tee applications as WT and MT shapes — truss and joist chords, built-up sections — in situations where the specific proportions of a split S shape suit the design, including retrofit or matching work on structures originally built with S-shape members.
AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!
Nearby Sections
Dimensions
| Property | Value |
|---|---|
| Nominal Weight (lb/ft) | 2.85 |
| Depth of Section (in) | 1.5 |
| Width of Section (in) | 2.33 |
| Web Thickness (in) | 0.17 |
| Flange Thickness (in) | 0.26 |
| Kdet Dimension (in) | 0.625 |
Full sortable table: Dimensions table for this family
Section Properties
| Property | Value |
|---|---|
| Ix (in⁴) | 0.114 |
| Zx (in³) | 0.196 |
| Sx (in³) | 0.097 |
| rx (in) | 0.37 |
| Iy (in⁴) | 0.223 |
| Zy (in³) | 0.328 |
| Sy (in³) | 0.192 |
| ry (in) | 0.518 |
| J (in⁴) | 0.0216 |
| Cw (in⁶) | 0.00189 |
| ro (in) | 0.667 |
| H (-) | 0.911 |
Full sortable table: Section properties table for this family
