ST2x4.75 – ST Shapes

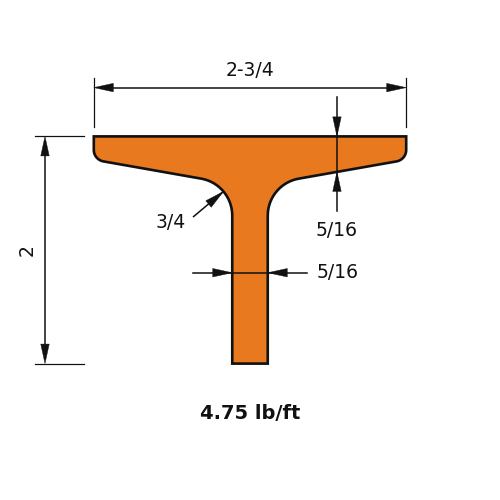

ST2x4.75 is a tee 2 in (51 mm) deep with a 2.8 in (71 mm) flange, weighing 4.75 lb/ft (7.1 kg/m).

ST shapes are structural tees split from S shapes, inheriting the tapered flange proportions of their S-shape parent. They're specified for the same general tee applications as WT and MT shapes — truss and joist chords, built-up sections — in situations where the specific proportions of a split S shape suit the design, including retrofit or matching work on structures originally built with S-shape members.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)4.75
Depth of Section (in)2.0
Width of Section (in)2.8
Web Thickness (in)0.326
Flange Thickness (in)0.293
Kdet Dimension (in)0.75

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)0.462
Zx (in³)0.592
Sx (in³)0.319
rx (in)0.575
Iy (in⁴)0.444
Zy (in³)0.565
Sy (in³)0.317
ry (in)0.564
J (in⁴)0.059
Cw (in⁶)0.00995
ro (in)0.903
H (-)0.797

Full sortable table: Section properties table for this family
