ST2.5x5 – ST Shapes

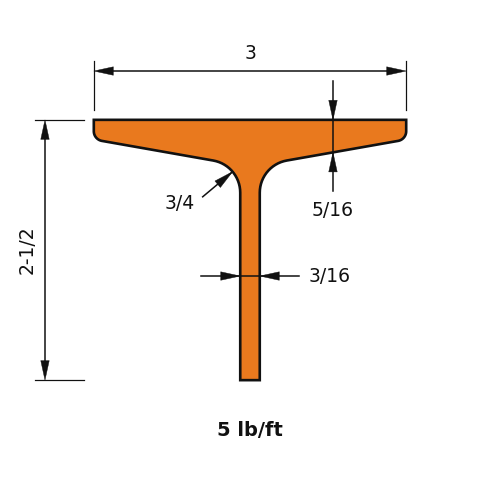

ST2.5x5 is a tee 2.5 in (64 mm) deep with a 3 in (76 mm) flange, weighing 5 lb/ft (7.4 kg/m).
ST shapes are structural tees split from S shapes, inheriting the tapered flange proportions of their S-shape parent. They're specified for the same general tee applications as WT and MT shapes — truss and joist chords, built-up sections — in situations where the specific proportions of a split S shape suit the design, including retrofit or matching work on structures originally built with S-shape members.
AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!
Nearby Sections
Dimensions
| Property | Value |
|---|---|
| Nominal Weight (lb/ft) | 5.0 |
| Depth of Section (in) | 2.5 |
| Width of Section (in) | 3.0 |
| Web Thickness (in) | 0.214 |
| Flange Thickness (in) | 0.326 |
| Kdet Dimension (in) | 0.75 |
Full sortable table: Dimensions table for this family
Section Properties
| Property | Value |
|---|---|
| Ix (in⁴) | 0.671 |
| Zx (in³) | 0.65 |
| Sx (in³) | 0.348 |
| rx (in) | 0.677 |
| Iy (in⁴) | 0.597 |
| Zy (in³) | 0.686 |
| Sy (in³) | 0.398 |
| ry (in) | 0.638 |
| J (in⁴) | 0.0568 |
| Cw (in⁶) | 0.01 |
| ro (in) | 1.02 |
| H (-) | 0.839 |
Full sortable table: Section properties table for this family
