ST3x6.25 – ST Shapes

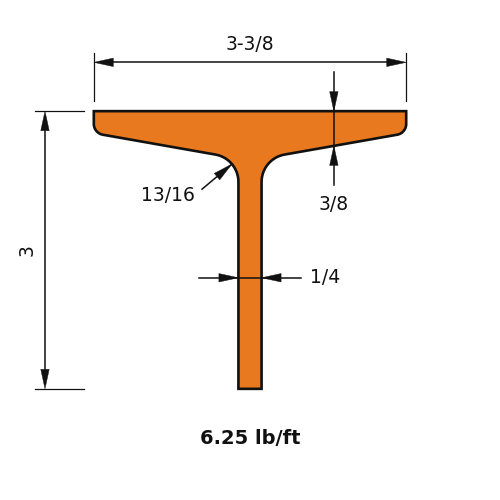

ST3x6.25 is a tee 3 in (76 mm) deep with a 3.33 in (85 mm) flange, weighing 6.25 lb/ft (9.3 kg/m).

ST shapes are structural tees split from S shapes, inheriting the tapered flange proportions of their S-shape parent. They're specified for the same general tee applications as WT and MT shapes — truss and joist chords, built-up sections — in situations where the specific proportions of a split S shape suit the design, including retrofit or matching work on structures originally built with S-shape members.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)6.25
Depth of Section (in)3.0
Width of Section (in)3.33
Web Thickness (in)0.232
Flange Thickness (in)0.359
Kdet Dimension (in)0.8125

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)1.26
Zx (in³)1.01
Sx (in³)0.547
rx (in)0.831
Iy (in⁴)0.901
Zy (in³)0.93
Sy (in³)0.541
ry (in)0.702
J (in⁴)0.083
Cw (in⁶)0.0197
ro (in)1.2
H (-)0.819

Full sortable table: Section properties table for this family
